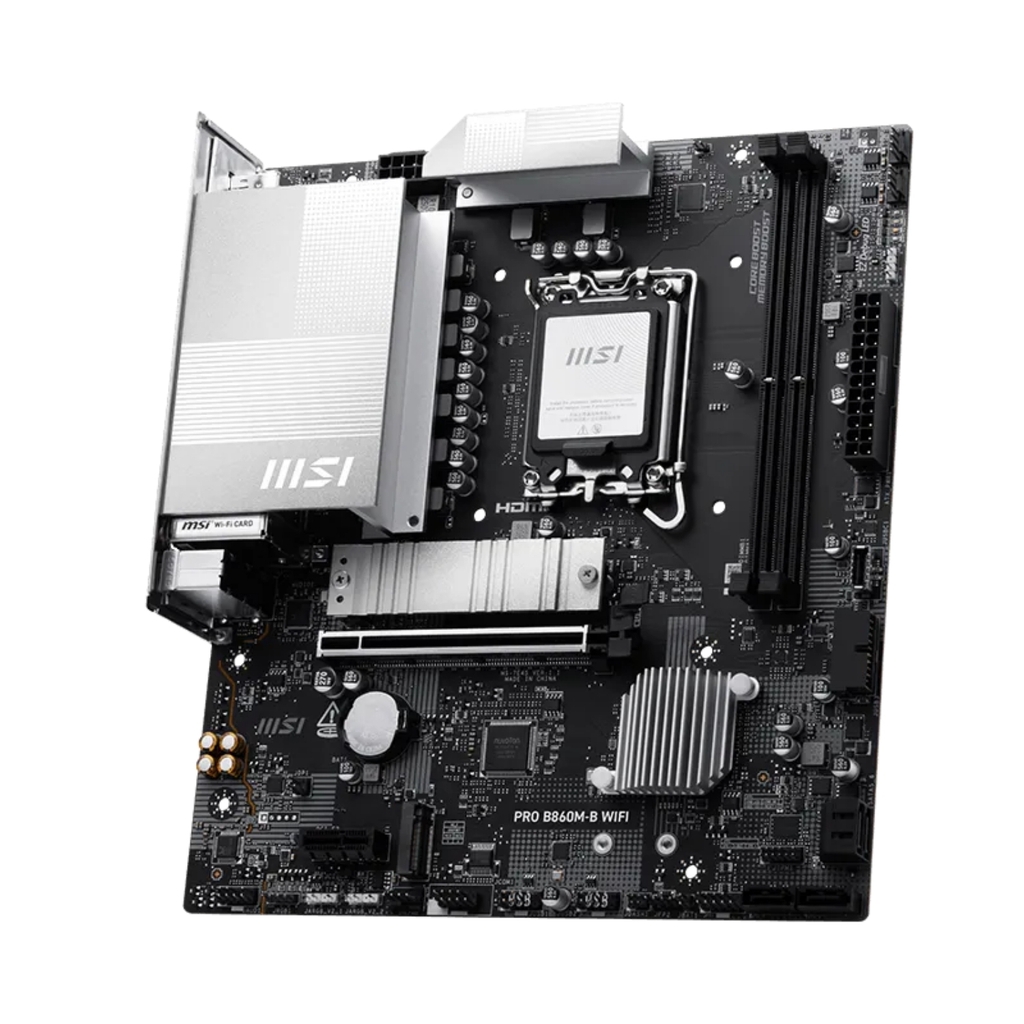

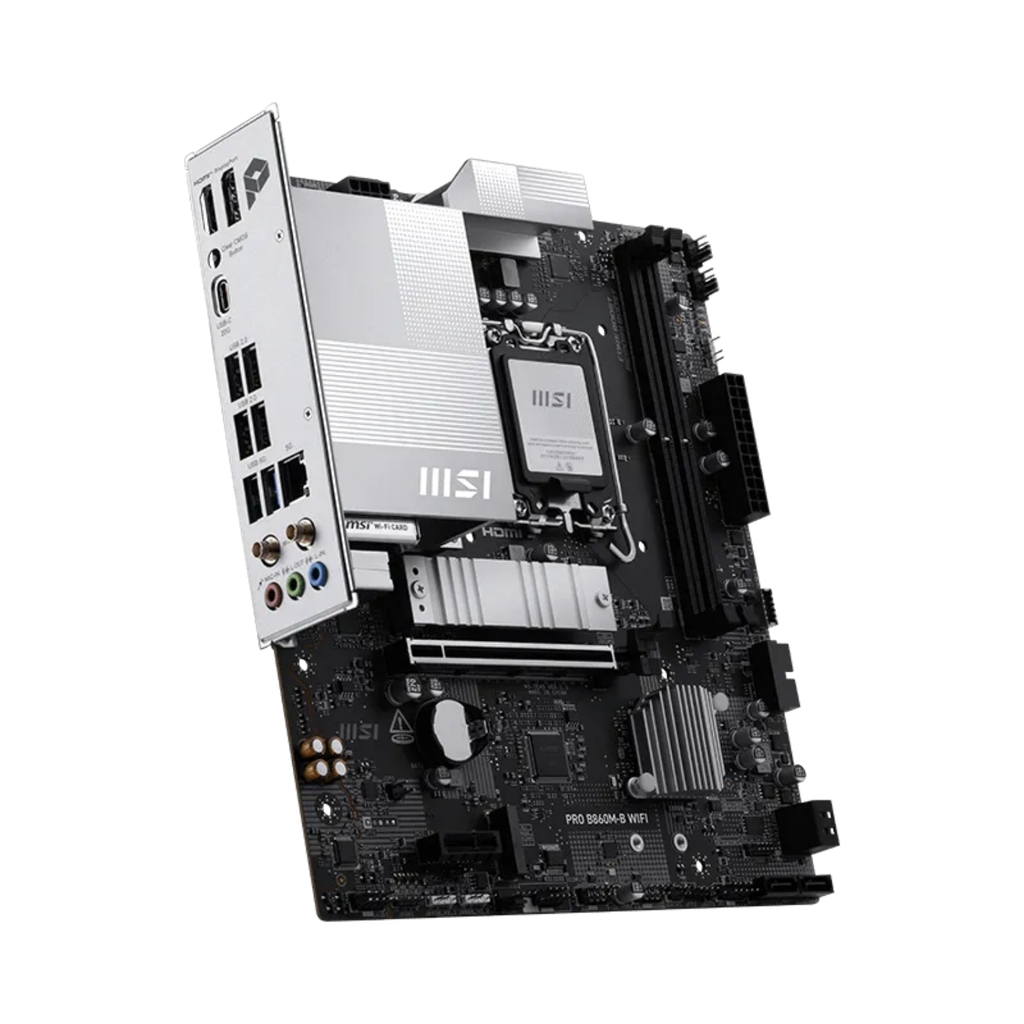

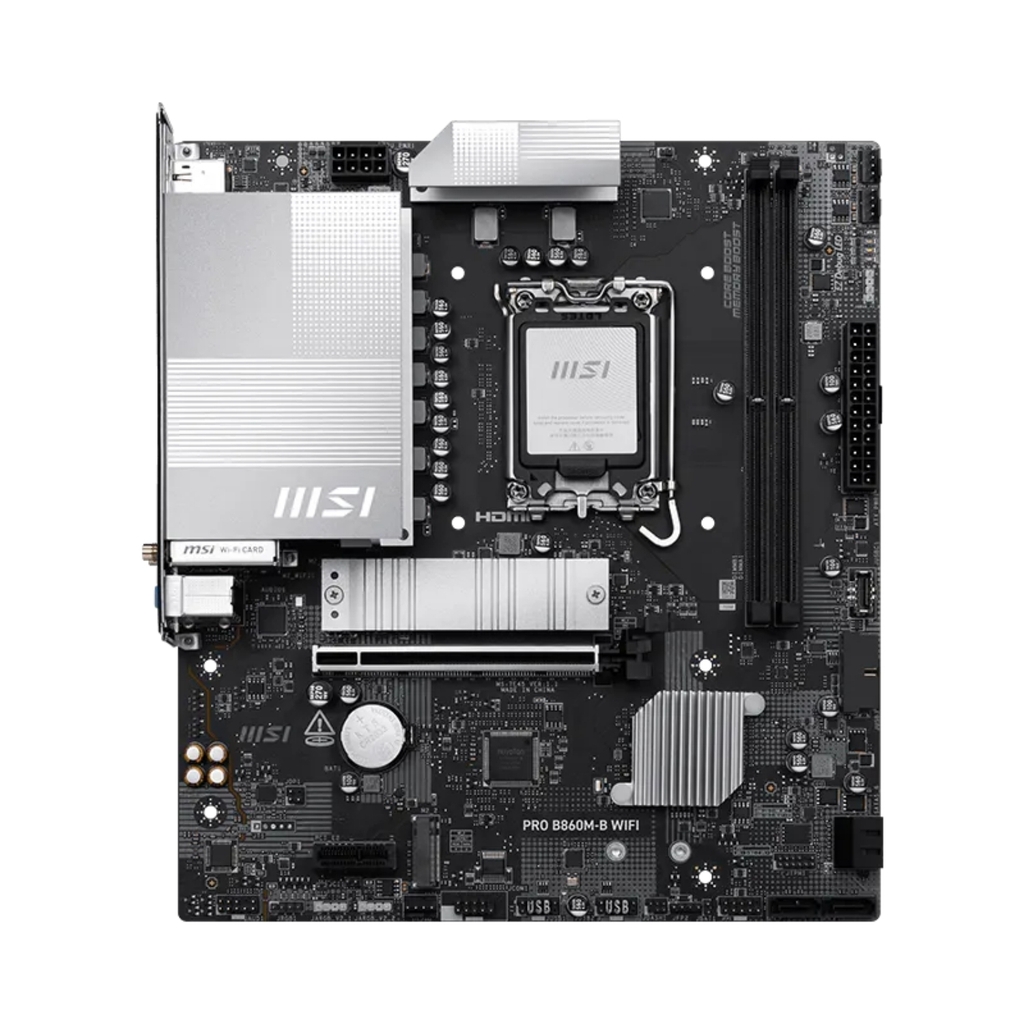

Mainboard MSI PRO B860M-B WIFI

📌 Cam Kết của KHO CÔNG NGHỆ ONLINE
✍️ Bảo hành 36 Tháng - Tại TTBH của Hãng hoặc Shop (Bảo hành thông qua serial trên sản phẩm)
✍️ Đổi trả 15 ngày đầu: Với các lỗi nhà sản xuất, hư hỏng trong quá trình vận chuyển, giao sai hoặc thiếu phụ kiện
_________________

Thông số kỹ thuật:

- Chipset: INTEL B860

- CPU:
  + Supports Intel Core Ultra Processors (Series 2)
  + LGA 1851

- Memory:
  + 2x DD5 UDIMM, Maximum Memory Capacity 128GB
  + Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  + Max. overclocking frequency:
   • 1DPC 1R Max speed up to 9066+ MT/s
   • 1DPC 2R Max speed up to 7200+ MT/s
  + Supports Intel POR Speed and JEDEC Speed
  + Supports Memory Overclocking and Intel XMP 3.0
  + Supports Dual-Controller Dual-Channel mode
  + Supports Non-ECC, Un-buffered memory
  + Supports CUDIMM

- Onboard Graphics
+ 1x HDMI (Support HDMI 2.1, maximum resolution of 4K 60Hz*)
+ 1x DisplayPort (Support DisplayPort 1.4, maximum resolution of 4K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed

- Slot
+ 1x PCI-E x16 slot
+ 1x PCI-E x1 slot
+ PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
+ PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

- Audio
+ Realtek ALC897 Codec
+ 7.1-Channel High Definition Audio

- Storage
+ 2x M.2
+ M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
+ M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
+ 4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions

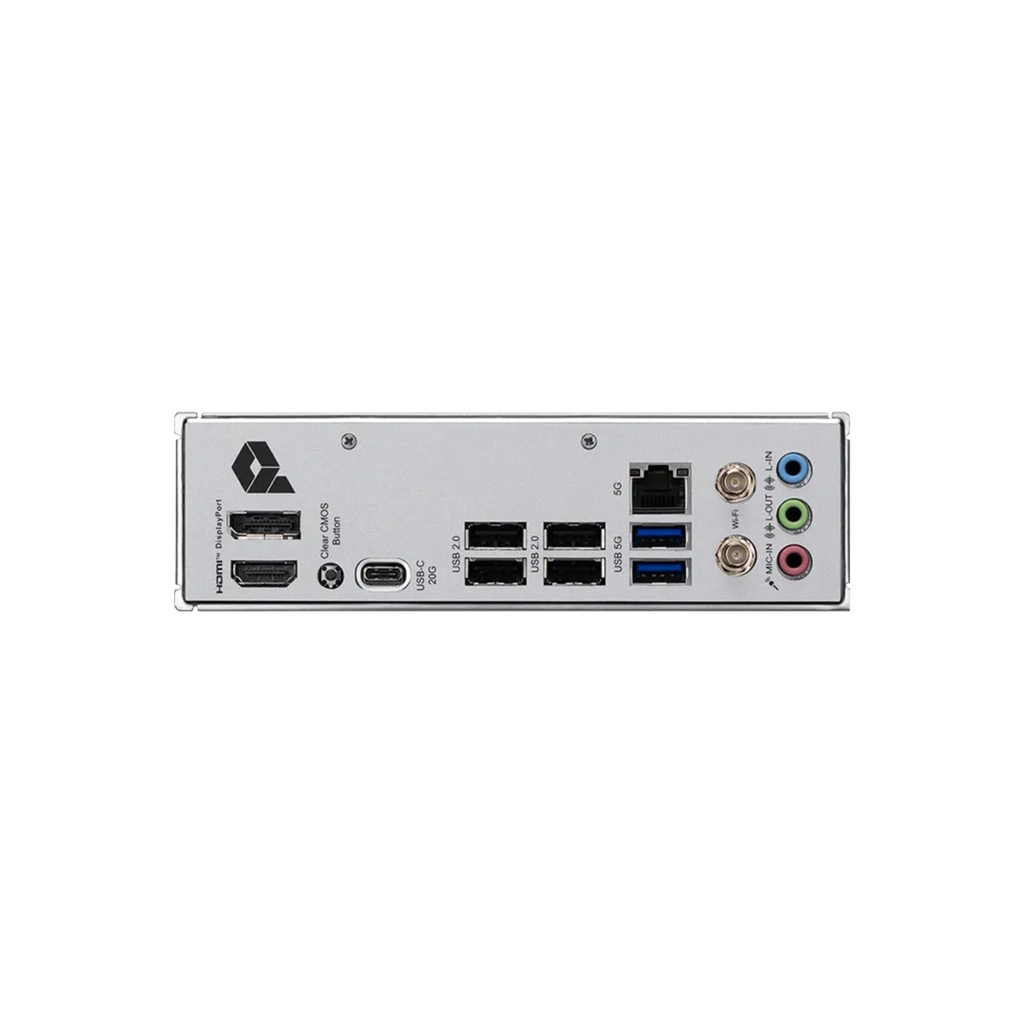

- USB
+ 4x USB 2.0 (Rear)
+ 4x USB 2.0 (Front)
+ 2x USB 5Gbps Type A (Rear)
+ 2x USB 5Gbps Type A (Front)
+ 1x USB 10Gbps Type C (Front)
+ 1x USB 20Gbps Type C (Rear)

- LAN: Realtek 8126 5Gbps LAN

- Internal IO
+ 1x Power Connector(ATX_PWR)
+ 1x Power Connector(CPU_PWR)
+ 1x CPU Fan
+ 2x System Fan
+ 2x Front Panel (JFP)
+ 1x Chassis Intrusion (JCI)
+ 1x Front Audio (JAUD)
+ 1x Com Port (JCOM)
+ 1x Tuning Controller connector(JDASH)
+ 3x Addressable V2 RGB LED connector (JARGB_V2)
+ 1x RGB LED connector(JRGB)
+ 1x TPM pin header(Support TPM 2.0)
+ 4x USB 2.0 ports
+ 2x USB 5Gbps Type A ports
+ 1x USB 10Gbps Type C ports

- WIRELESS LAN & BLUETOOTH

+ Wi-Fi 7
+ The Wireless module is pre-installed in the M.2 (Key-E) slot
+ Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.9Gbps
+ Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
+ Supports Bluetooth 5.4**, MLO, 4KQAM

- LED FEATURE
+ 4x EZ Debug LED
+ 1x EZ Memory Detection LED

- OPERATING SYSTEM: Support for Windows 11 64-bit

- PCB Info: mATX (220mmx243.84mm)
