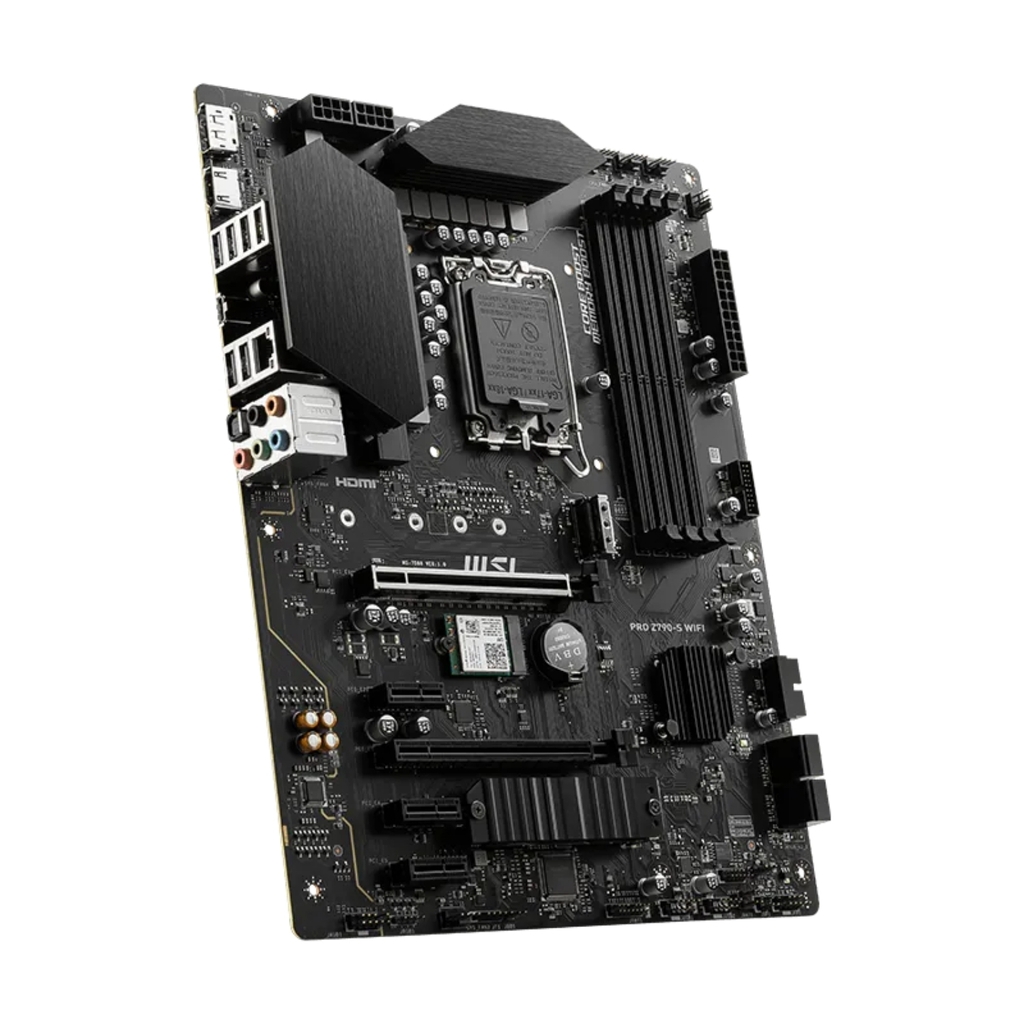

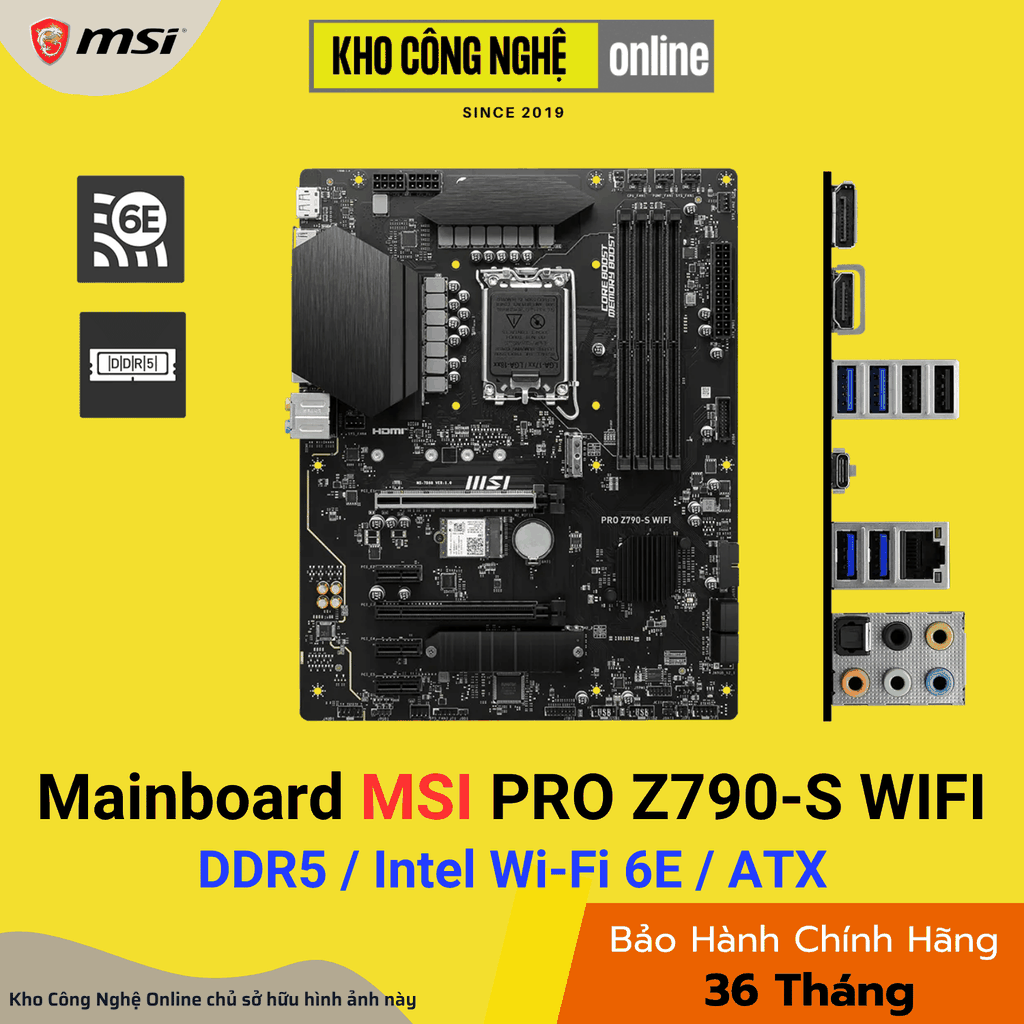

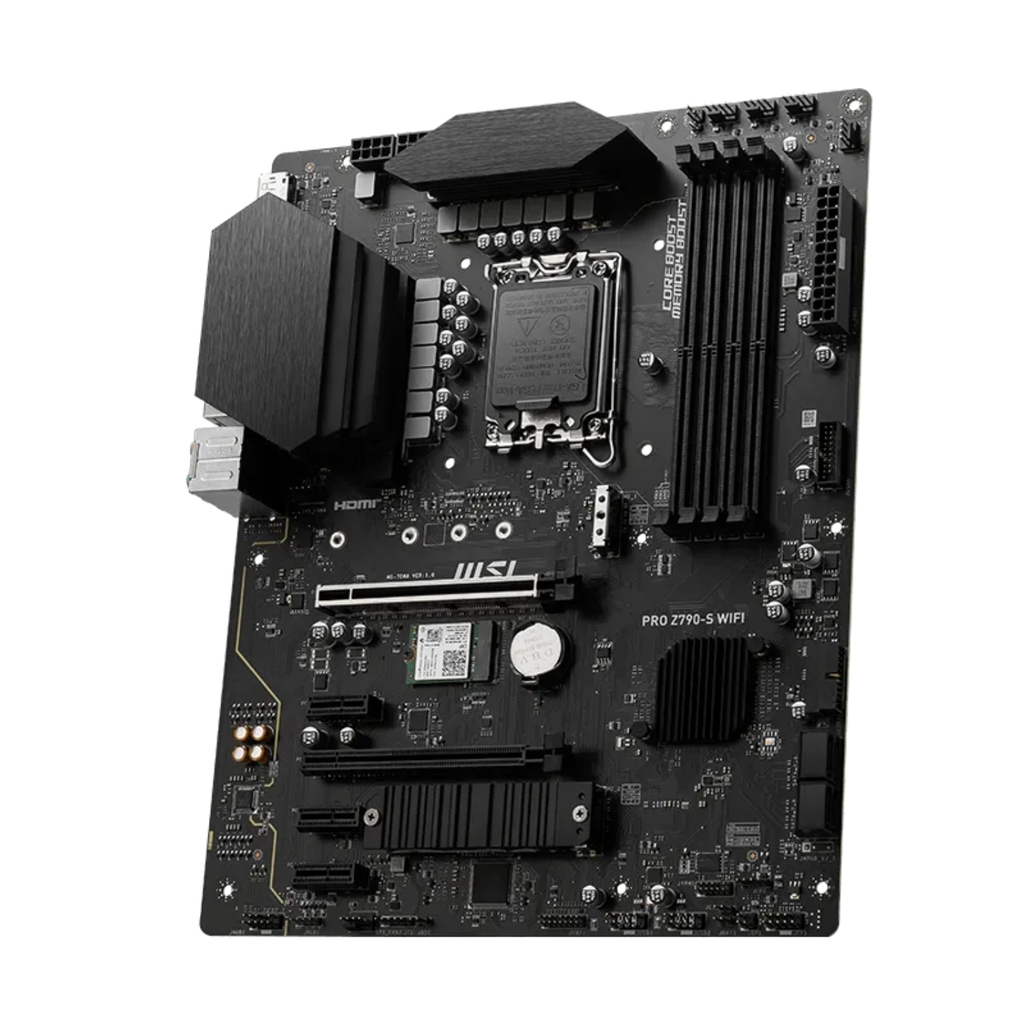

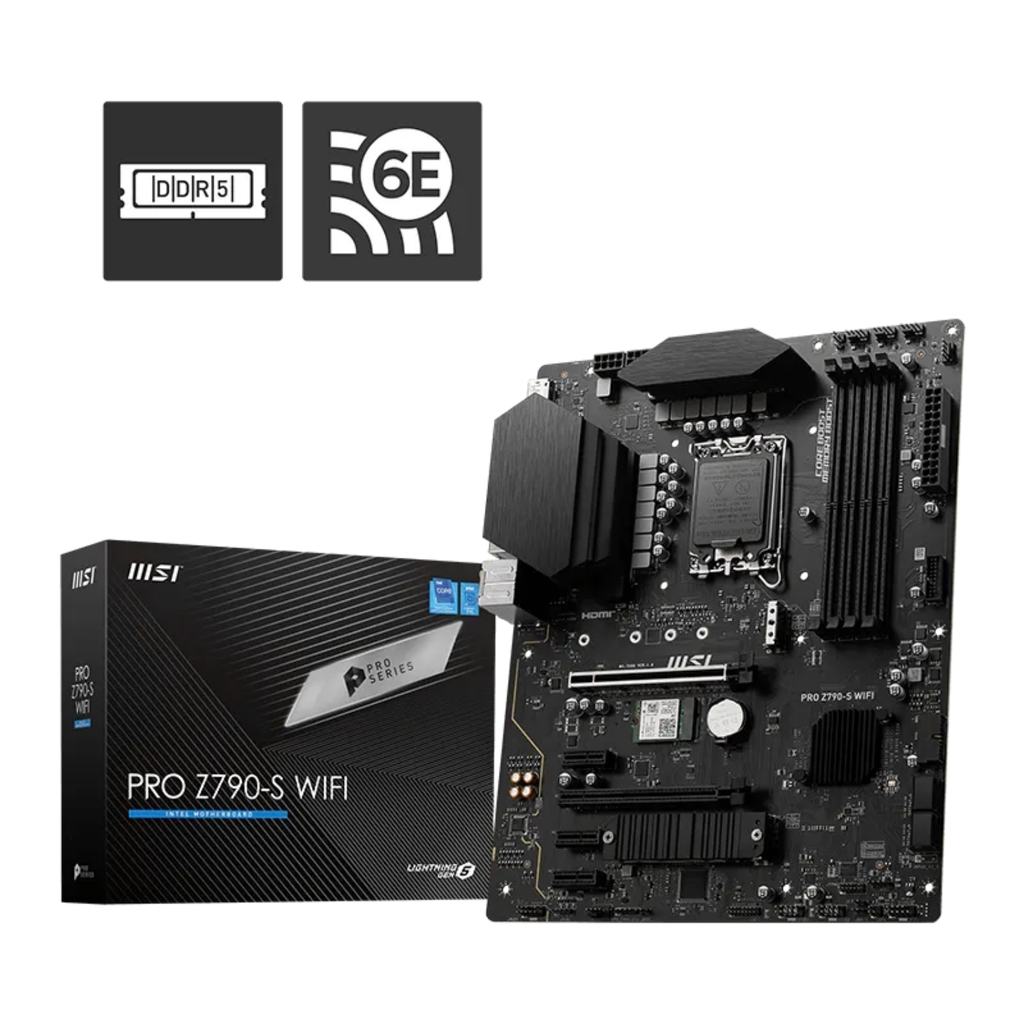

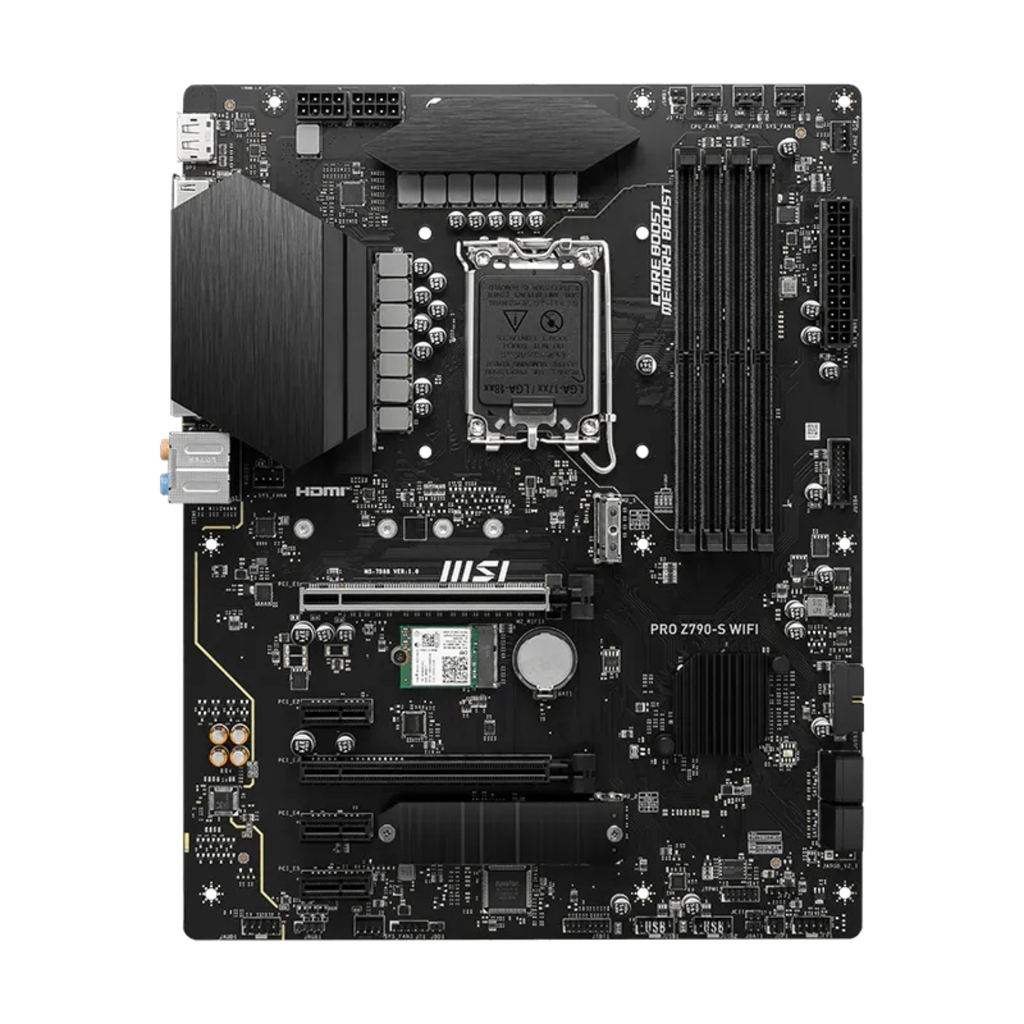

Mainboard MSI PRO Z790-S WIFI DDR5

📌 Cam Kết của KHO CÔNG NGHỆ ONLINE
✍️ Sản phẩm Mới Chính hãng 100%
✍️ Bảo hành 36 Tháng - Tại TTBH của Hãng hoặc Shop (Bảo hành thông qua serial trên sản phẩm)
__________________________

Thông số kỹ thuật:

- Chipset: INTEL Z790

- CPU
  + Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
  + LGA 1700

- Memory
  + 4x DDR5, Maximum Memory Capacity 256GB
  + Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  + Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6600+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz
  + Supports Intel XMP 3.0 OC
  + Supports Dual-Controller Dual-Channel mode
  + Supports non-ECC, un-buffered memory

- Onboard Graphics
  + 1x HDMI
    • Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
  + 1x DisplayPort
    • Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

- Slot
  + 2x PCI-E x16 slot (Qty)
  + 3x PCI-E x1 slot (Qty)
  + PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  + PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  + PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
  + PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  + PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

- Audio
  + Realtek ALC897 Codec
  + 7.1-Channel High Definition Audio
  + Supports S/PDIF output

- Storage
  + 2x M.2 (Qty)
  + M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  + M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  + 4x SATA 6G (Qty)

- RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

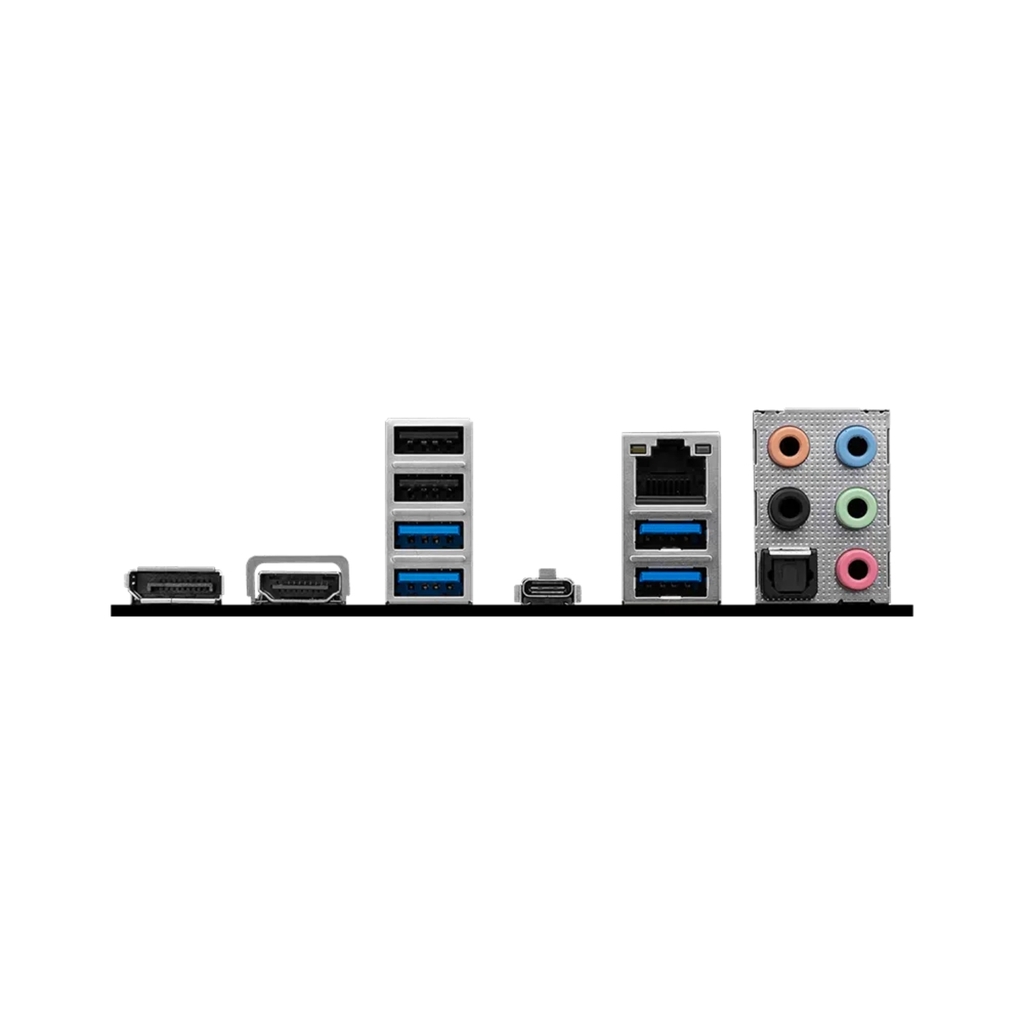

- USB
  + 2x USB 2.0 (Rear)
  + 4x USB 2.0 (Front)
  + 4x USB 5Gbps Type A (Rear)
  + 4x USB 5Gbps Type A (Front)
  + 1x USB 20Gbps Type C (Rear)

- LAN: Realtek RTL8125BG 2.5Gbps LAN

- Internal IO
  + 1x Power Connector(ATX_PWR)
  + 2x Power Connector(CPU_PWR)
  + 1x CPU Fan
  + 1x Pump Fan
  + 4x System Fan
  + 2x Front Panel (JFP)
  + 1x Chassis Intrusion (JCI)
  + 1x Front Audio (JAUD)
  + 1x RGB LED connector(JRGB)
  + 1x TPM pin header(Support TPM 2.0)
  + 4x USB 2.0 ports
  + 4x USB 5Gbps Type A ports

- WIRELESS LAN & BLUETOOTH
  + Intel® Wi-Fi 6E
  + The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  + Supports 802.11 a/ b/ g/ n/ ac/ ax
  + Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

- OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit

- PCB Info
  + ATX
  + 243.84mmx304.8mm
