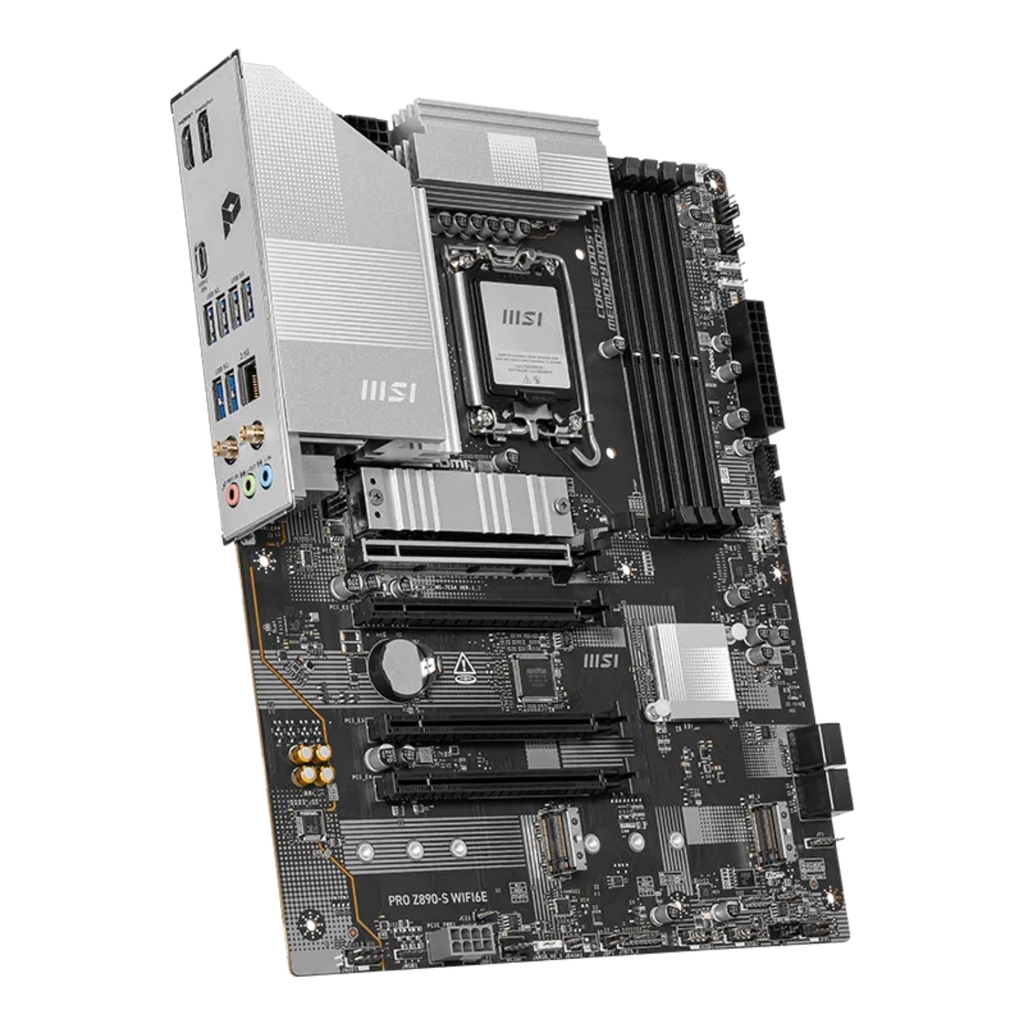

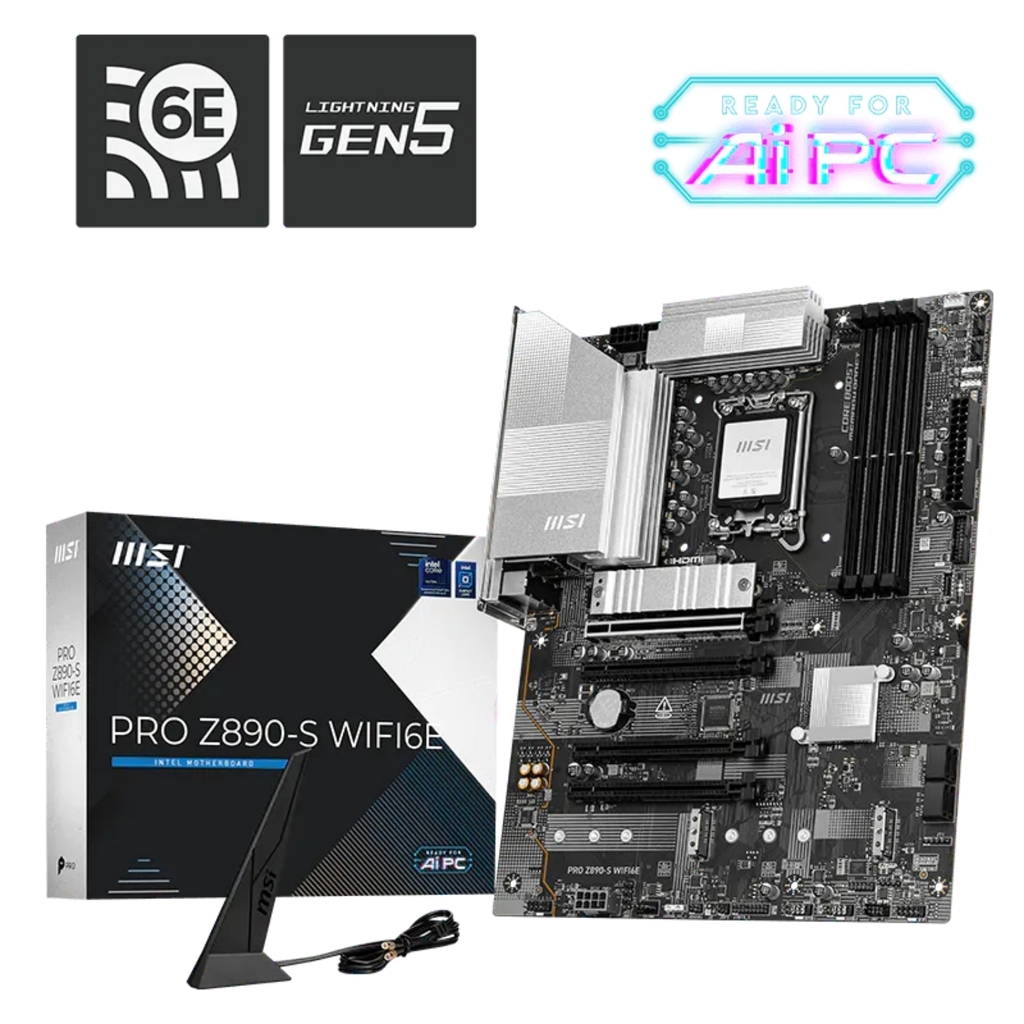

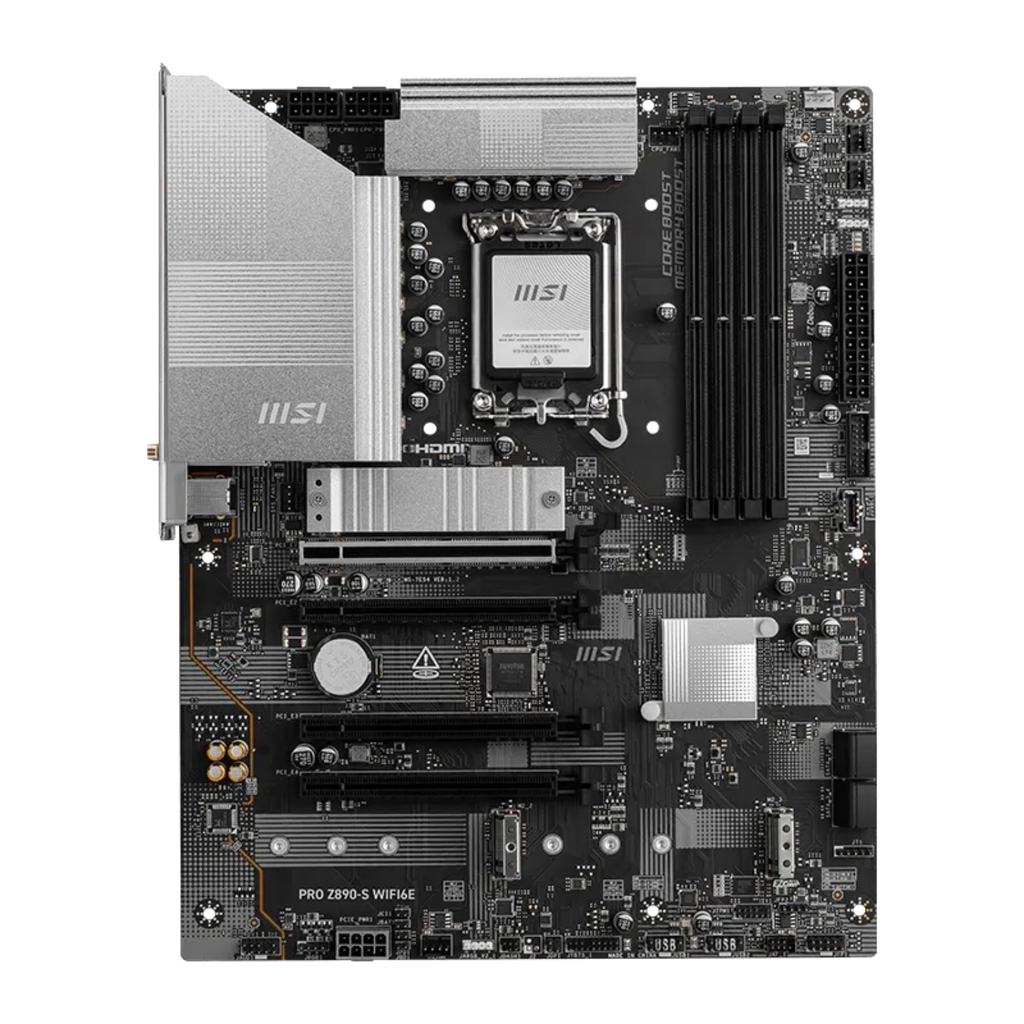

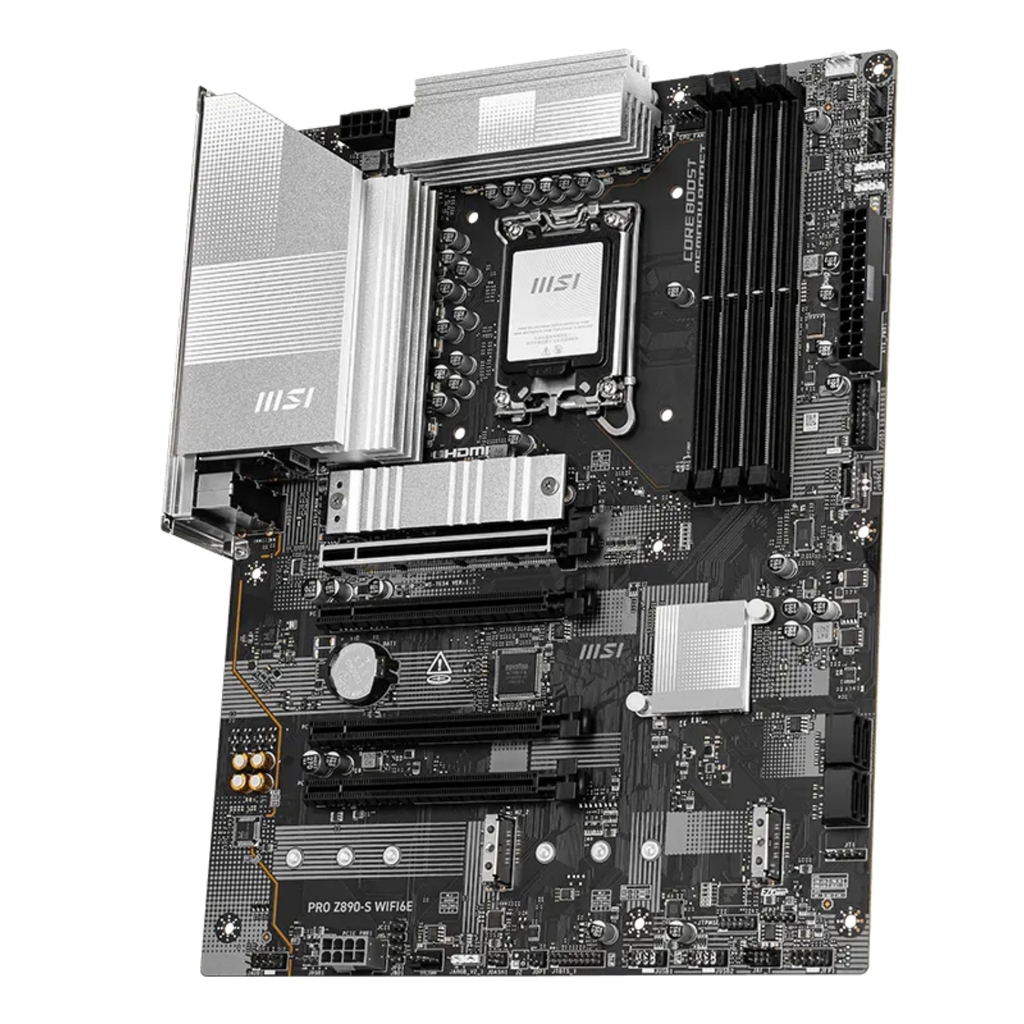

Mainboard MSI PRO Z890-S WIFI6E

📌 Cam Kết của KHO CÔNG NGHỆ ONLINE
✍️ Sản phẩm mới chính hãng 100%
✍️ Bảo hành 36 Tháng - Tại TTBH của Hãng hoặc Shop đều được ( qua serial trên sản phẩm)
✍️ Đổi trả 15 ngày đầu: Với các lỗi nhà sản xuất, hư hỏng trong quá trình vận chuyển, giao sai hoặc thiếu phụ kiện.
_________________________

Thông số kỹ thuật:

- Chipset: INTEL Z890

- CPU: LGA 1851, Supports Intel Core Ultra Processors (Series 2)

- Memory
  + 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  + Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  + Max. overclocking frequency:
  • 1DPC 1R Max speed up to 8800+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s
  + Supports Intel POR Speed and JEDEC Speed
  + Supports Memory Overclocking and Intel XMP 3.0
  + Supports Dual-Controller Dual-Channel mode
  + Supports Non-ECC, Un-buffered memory
  + Supports CUDIMM

- Onboard Graphics
  + 1x HDMI (Support HDMI 2.1, maximum resolution of 4K 60Hz)
  + 1x DisplayPort (Support DisplayPort 1.4, maximum resolution of 4K 60Hz)

- Slot
  + 4x PCI-E x16 slot
  + PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  + PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  + PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  + PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)

- Audio
  + Realtek ALC897 Codec
  + 7.1-Channel High Definition Audio

- Storage
  + 3x M.2
  + M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
  + M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  + M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  + 4x SATA 6G

- RAID:
  + Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  + Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

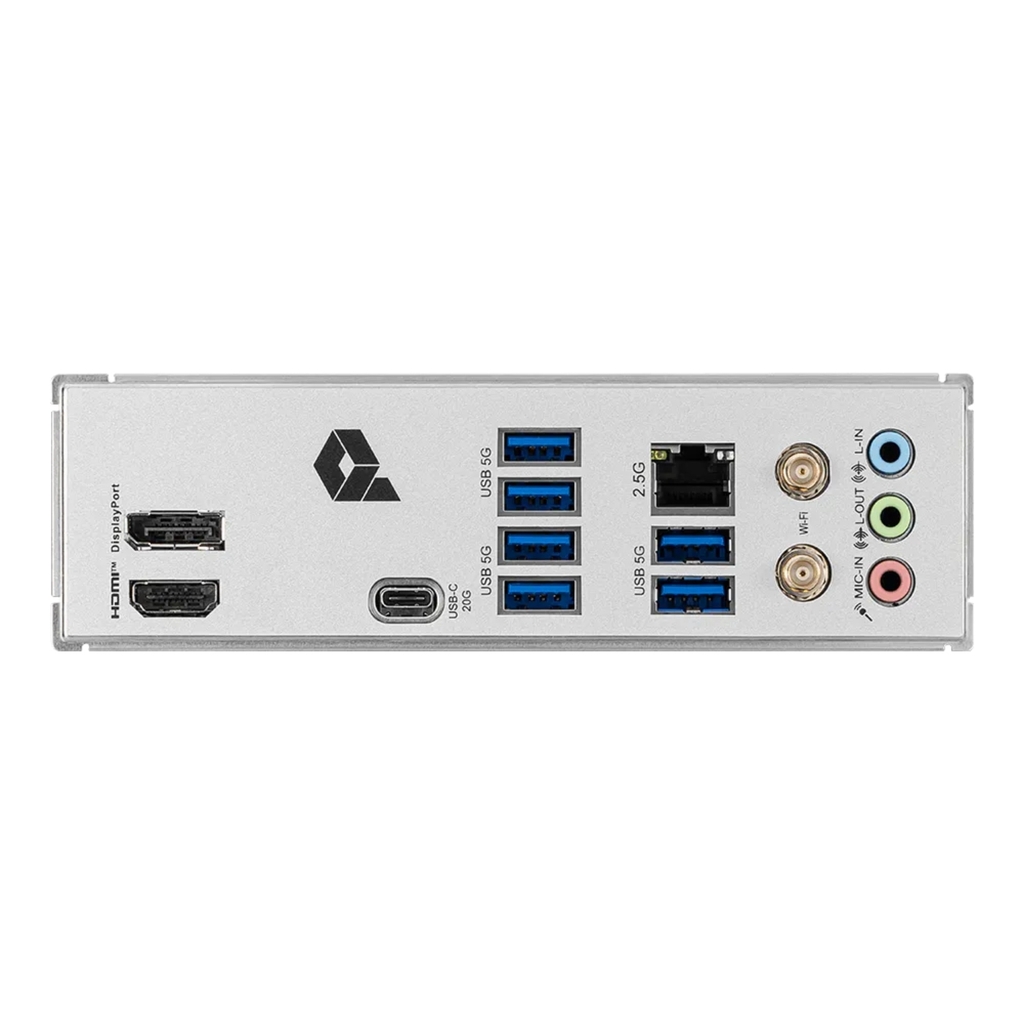

- USB
  + 4x USB 2.0 (Front)
  + 6x USB 5Gbps Type A (Rear)
  + 2x USB 5Gbps Type A (Front)
  + 1x USB 20Gbps Type C (Rear)
  + 1x USB 20Gbps Type C (Front)

- LAN: Realtek 8125D 2.5Gbps LAN

- Internal IO
  + 1x Power Connector(ATX_PWR)
  + 2x Power Connector(CPU_PWR)
  + 1x Power Connector(PCIE_PWR 8pin)
  + 1x CPU Fan
  + 1x Combo Fan (Pump_Sys Fan)
  + 4x System Fan
  + 2x Front Panel (JFP)
  + 1x Chassis Intrusion (JCI)
  + 1x Front Audio (JAUD)
  + 1x Tuning Controller connector(JDASH)
  + 3x Addressable V2 RGB LED connector (JARGB_V2)
  + 1x RGB LED connector(JRGB)
  + 1x TPM pin header(Support TPM 2.0)
  + 4x USB 2.0 ports
  + 2x USB 5Gbps Type A ports
  + 1x USB 20Gbps Type C ports

- WIRELESS LAN & BLUETOOTH
  + Wi-Fi 6E Solution
  + The Wireless module is pre-installed in the M.2 (Key-E) slot
  + Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  + Supports 802.11 a/ b/ g/ n/ ac/ ax
  + Supports Bluetooth 5.3**, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

- LED FEATURE: 4x EZ Debug LED

- OPERATING SYSTEM: Support for Windows 11 64-bit

- PCB Info: ATX (243.84mmx304.8mm)
