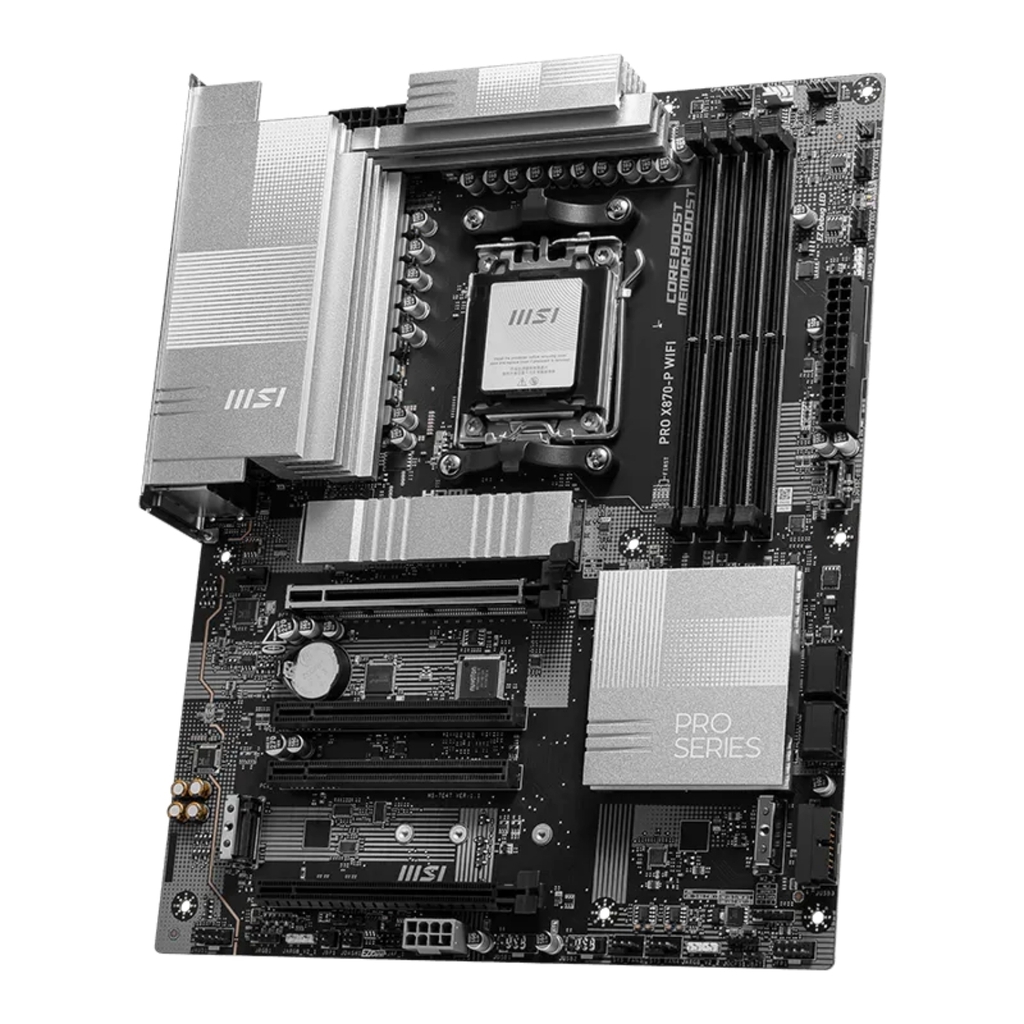

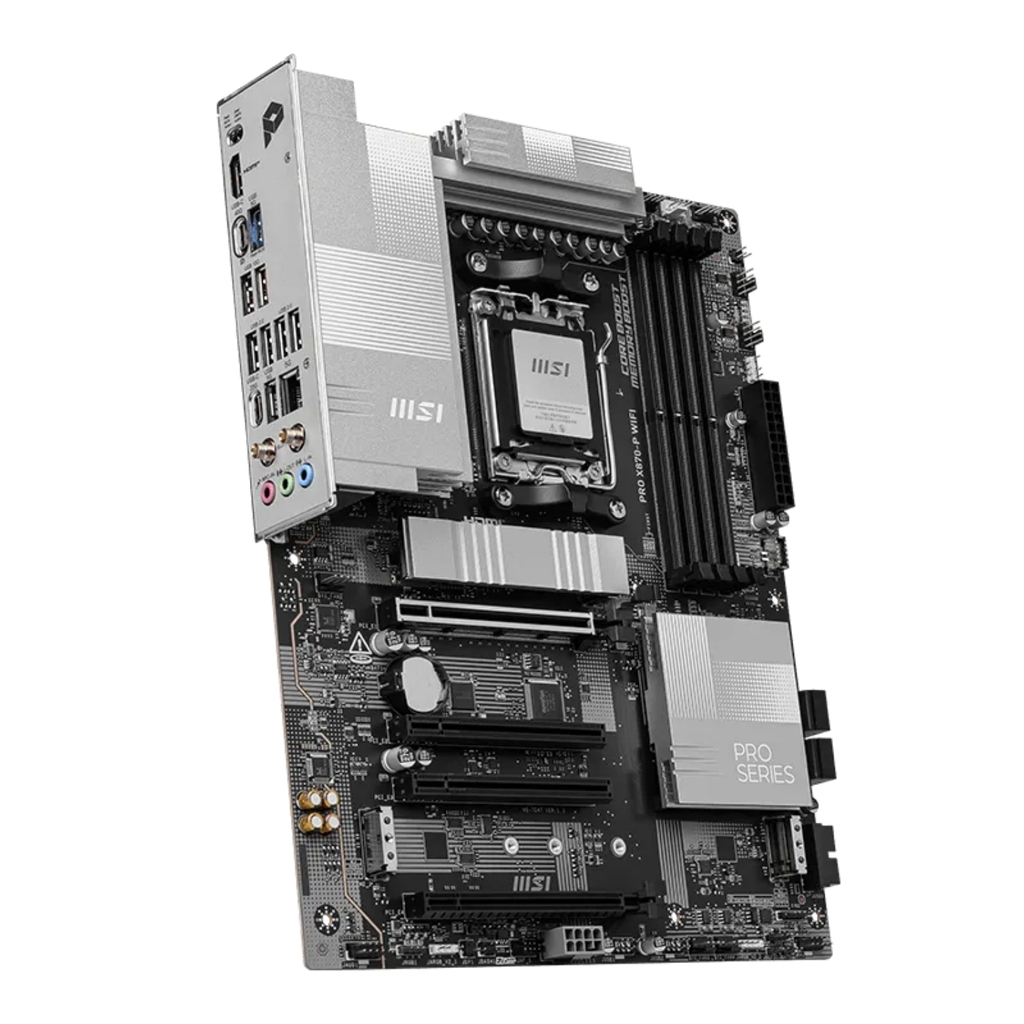

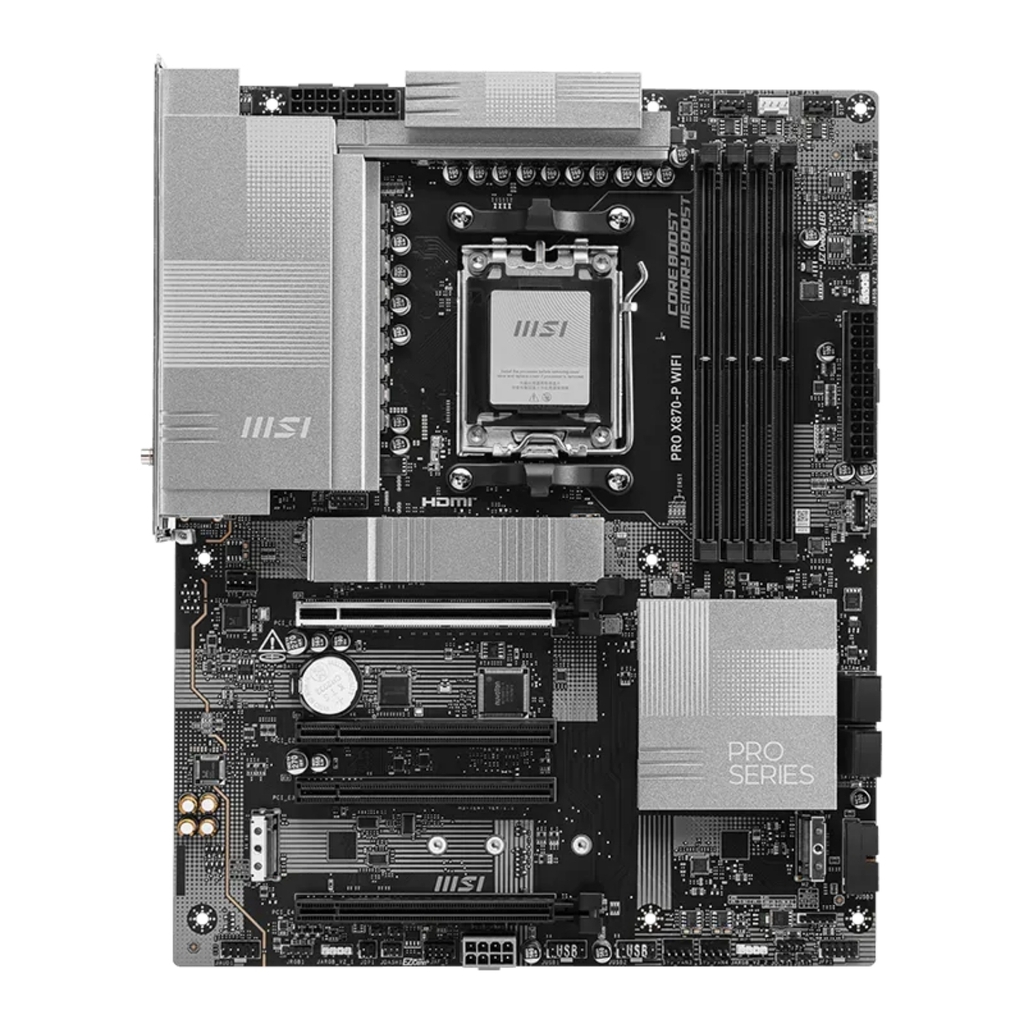

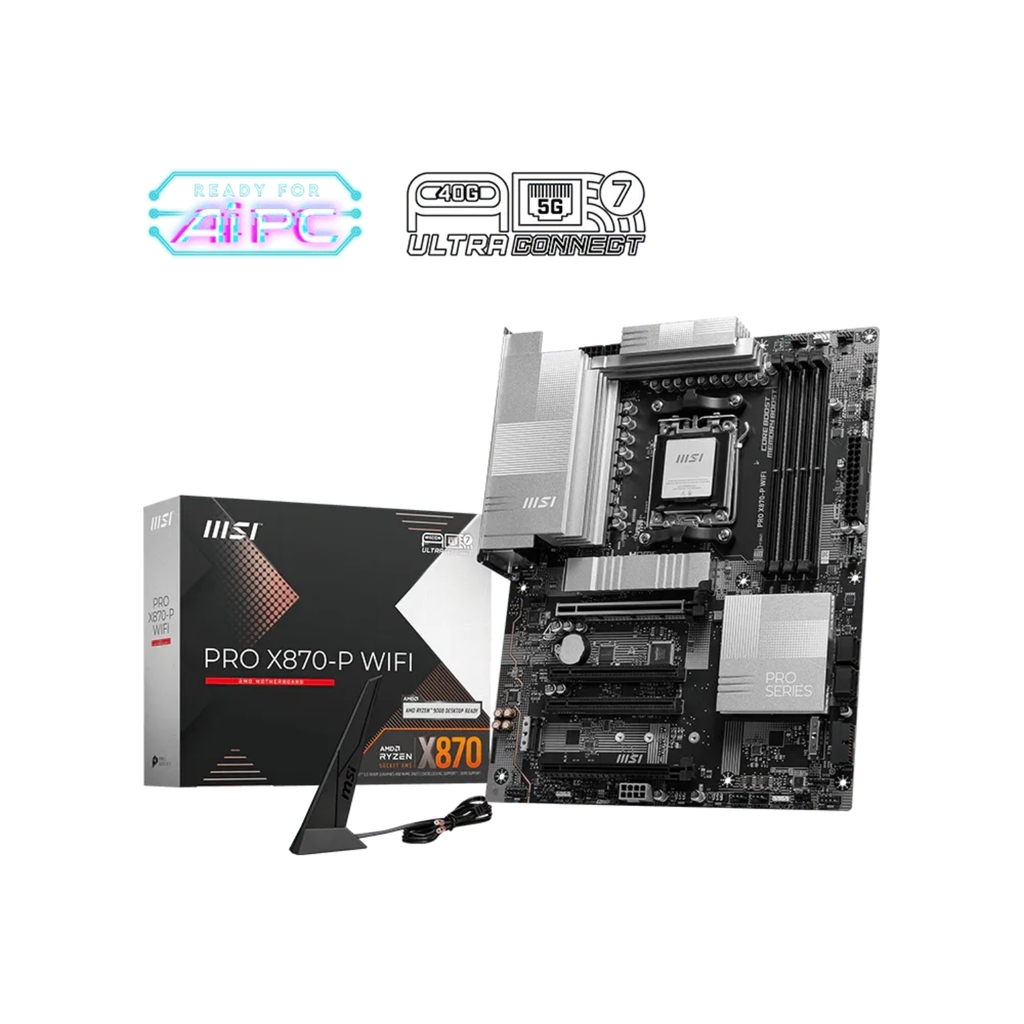

Mainboard MSI PRO X870-P WIFI

📌 Cam Kết của KHO CÔNG NGHỆ ONLINE
✍️ Sản phẩm Mới Chính hãng 100%
✍️ Bảo hành 36 Tháng - Tại TTBH của Hãng hoặc Shop (Bảo hành thông qua serial trên sản phẩm)
✍️ Đổi trả 15 ngày đầu: Với các lỗi nhà sản xuất, hư hỏng trong quá trình vận chuyển, giao sai hoặc thiếu phụ kiện

_________________

Thông số kỹ thuật:

- Chipset: AMD X870

- CPU: Socket AM5, Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

- Memory
+ 4 x DDR5 UDIMM, Max. 256GB
+ Memory Speed: 4800–5600 MT/s (JEDEC), Up to 8200+ MT/s (OC)
+ Ryzen 9000 Series Max. OC:
• 1DPC 1R: 8200+ MT/s
• 1DPC 2R: 6400+ MT/s
• 2DPC 1R: 6400+ MT/s
• 2DPC 2R: 6000+ MT/s
+ Supports AMD POR Speed and JEDEC Speed
+ Supports Memory Overclocking and AMD EXPOTM
+ Supports Dual-Channel mode
+ Supports Non-ECC, Un-buffered memory
+ Supports CUDIMM, Clock Driver bypass mode only

- Onboard Graphics
+ 1x HDMI (Support HDMITM 2.1, maximum resolution of 4K 60Hz)
+ 1x Type-C DisplayPort (USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz)

- Slot
+ 4x PCI-E x16 slot (Qty)
+ PCI_E1 Gen PCIe 5.0 x16 (From CPU)
+ PCI_E2 Gen PCIe 3.0 x1 (From Chipset)
+ PCI_E3 Gen PCIe 3.0 x1 (From Chipset)
+ PCI_E4 Gen PCIe 4.0 x4 (From Chipset)
+ PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)

* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot

- Audio
+ Realtek ALC897
+ 7.1-Channel High Definition Audio

- Storage
+ 3 × M.2 Slots
+ M.2_1: PCIe 5.0 x4 (CPU, 2280/2260)
+ M.2_2: PCIe 4.0 x4 (Chipset, 22110/2280)
+ M.2_3: PCIe 4.0 x2 (Chipset, 2280/2260)
+4 × SATA 6Gb/s
+ M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

- RAID: RAID 0/1/5 (M.2 NVMe)
+ SATA Ports Do Not Support RAID
+ RAID 5: Ryzen 9000 Series Only

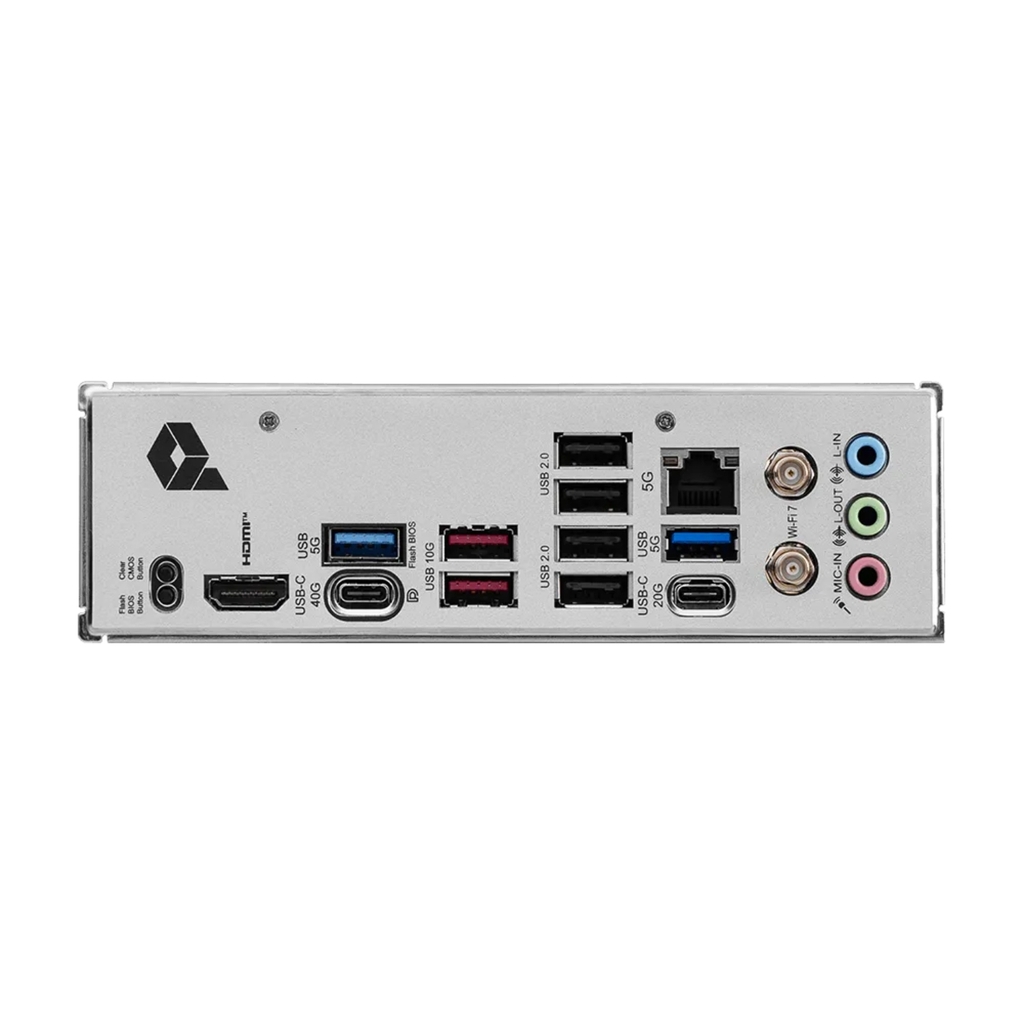

- USB:
+ 8 x USB 2.0 (4 Rear, 4 Front)
+ 4 x USB 5Gbps Type-A (2 Rear, 2 Front)
+ 2 x USB 10Gbps Type-A (Rear)
+ 1 x USB 10Gbps Type-C (Front)
+ 1 x USB 20Gbps Type-C (Rear)
+ 1 x USB 40Gbps Type-C (Rear)

- LAN: Realtek 8126VB 5G LAN

- Internal IO
+ 1 x ATX Power (ATX_PWR)
+ 2 x CPU Power (CPU_PWR)
+ 1 x PCIe 8-pin Power (PCIE_PWR)
+ 1 x CPU Fan
+ 1 x PUMP_SYS Fan
+ 6 x System Fans
+ 1 x ARGB + Fan Header (JAF_1)
+ 2 x Front Panel (JFP)
+ 1 x Chassis Intrusion (JCI)
+ 1 x Front Audio (JAUD)
+ 1 x Tuning Controller (JDASH)
+ 3 x ARGB Gen2 (JARGB_V2)
+ 1 x RGB LED (JRGB)
+ 1 x TPM Header (TPM 2.0)
+ 4 x USB 2.0
+ 2 x USB 5Gbps Type-A
+ 1 x USB 10Gbps Type-C

- WIRELESS LAN & BLUETOOTH

+ Wi-Fi 7
+ Pre-installed M.2 Key-E Module
+ Up to 5.8Gbps (2.4/5/6GHz, 320MHz)
+ 802.11 a/b/g/n/ac/ax/be
+ Bluetooth 5.4, MLO, 4K-QAM

- LED FEATURE: 4x EZ Debug LED

- PCB Info: ATX (243.84mmx304.8mm)
