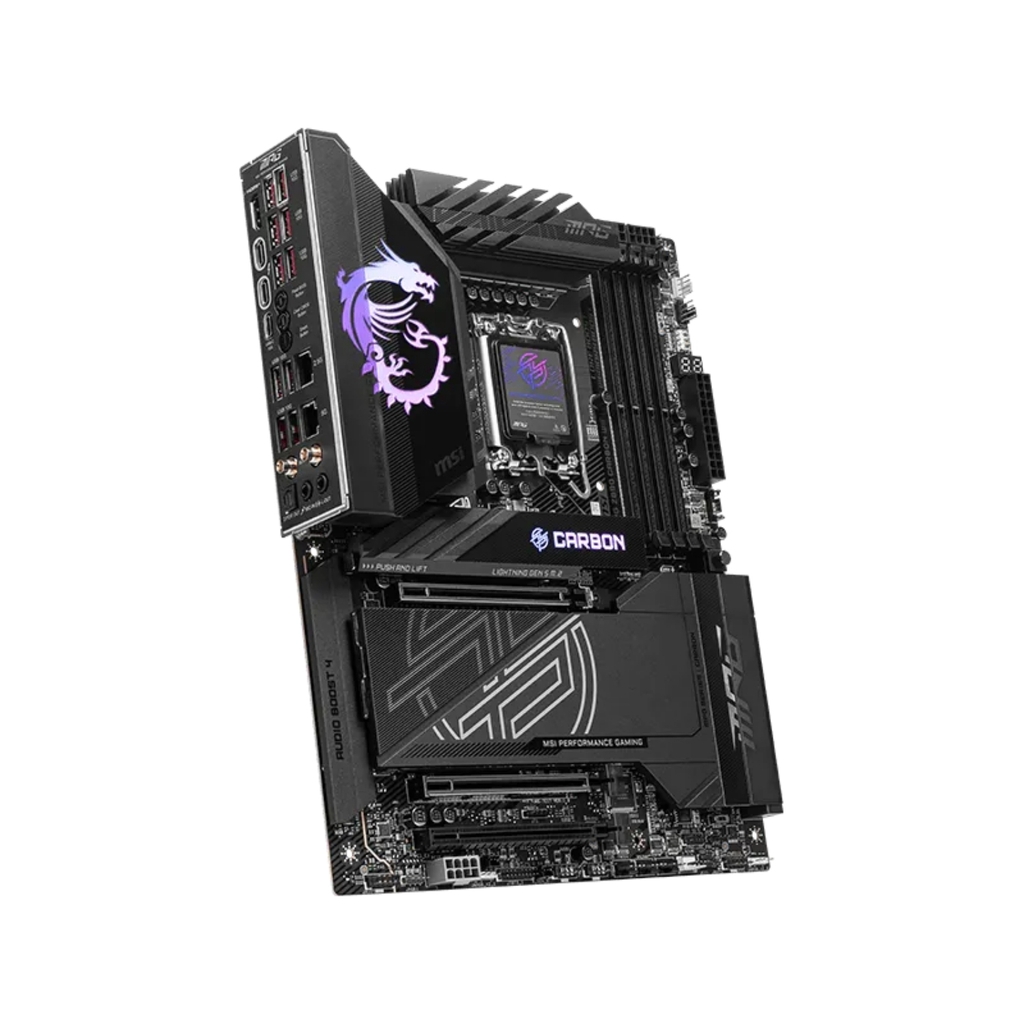

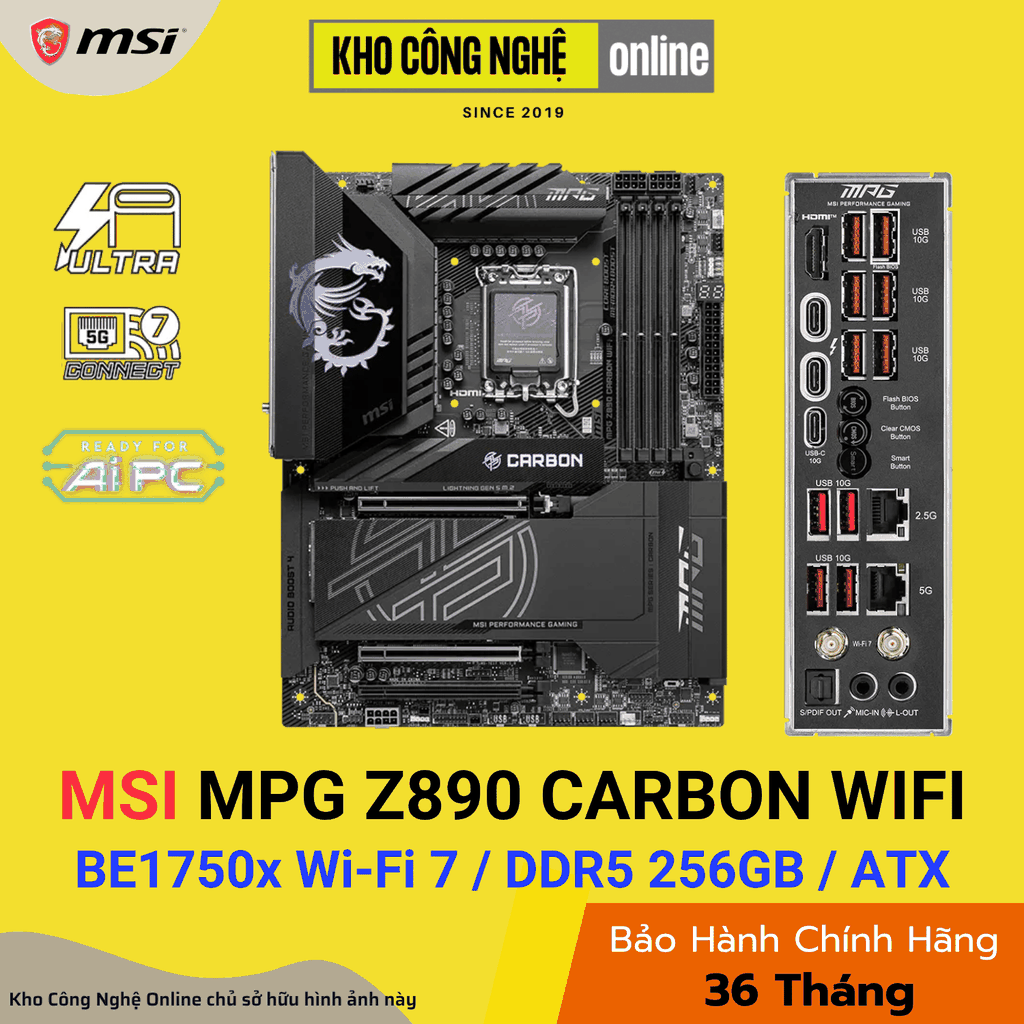

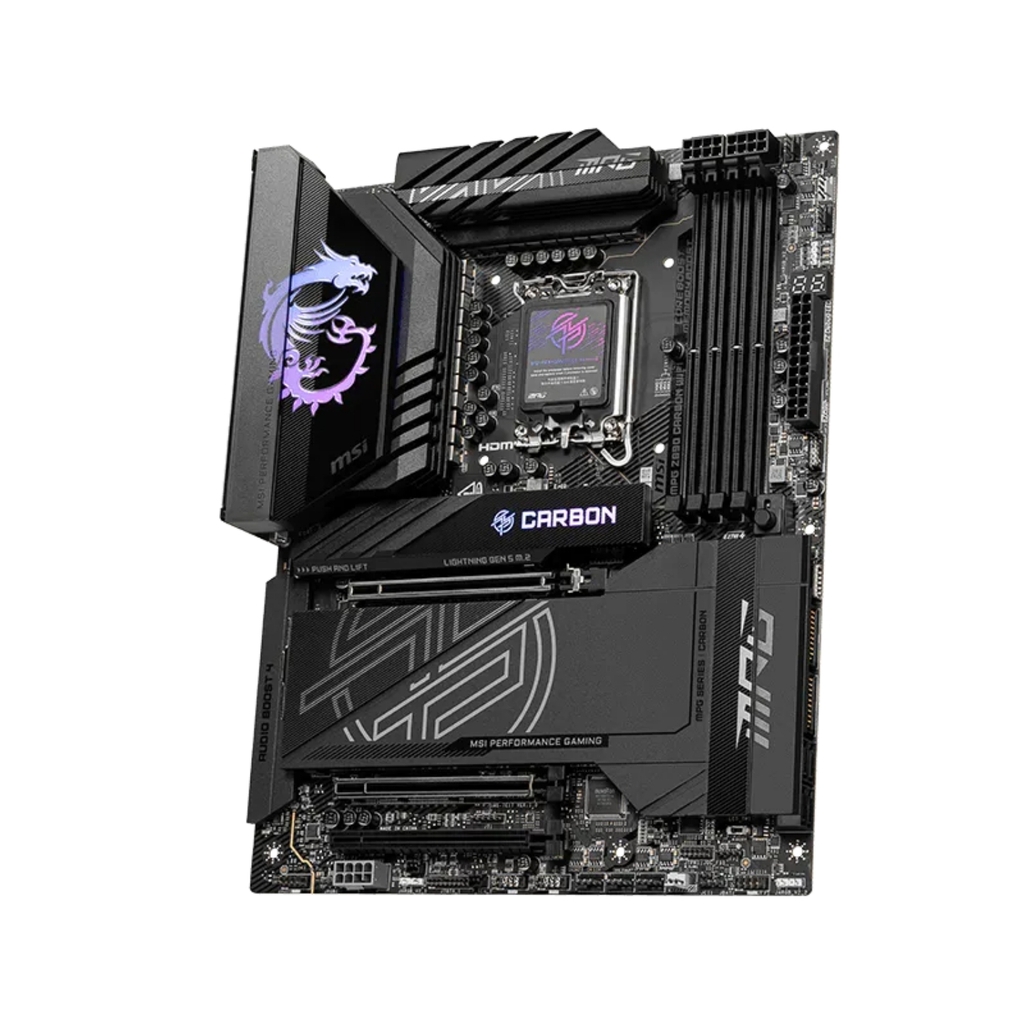

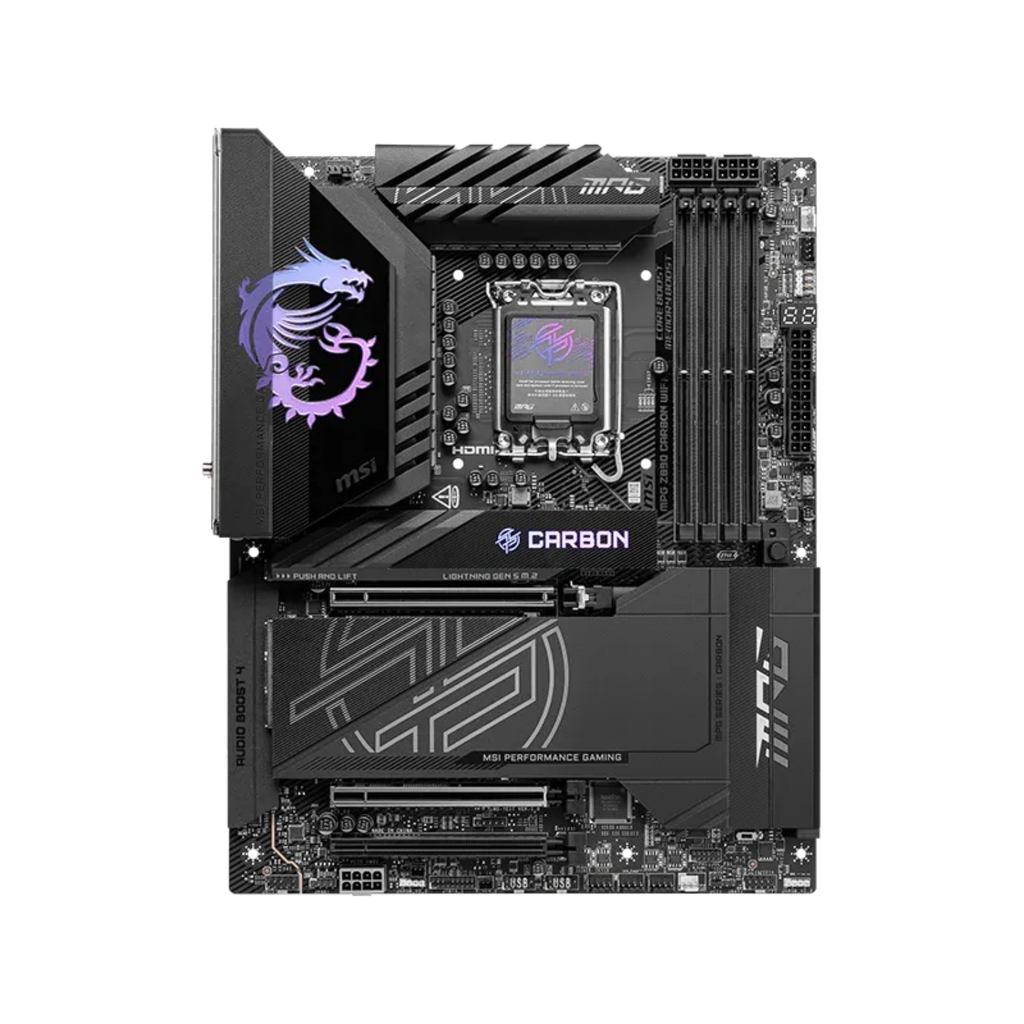

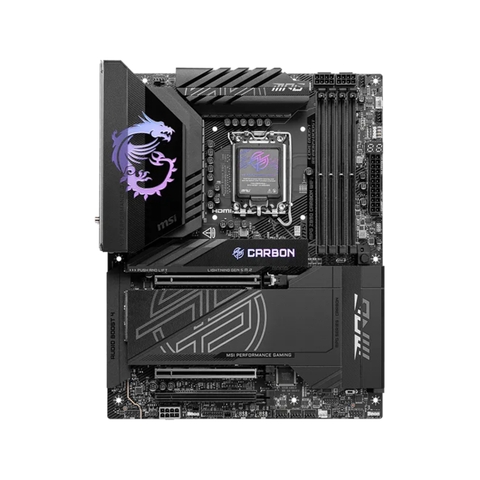

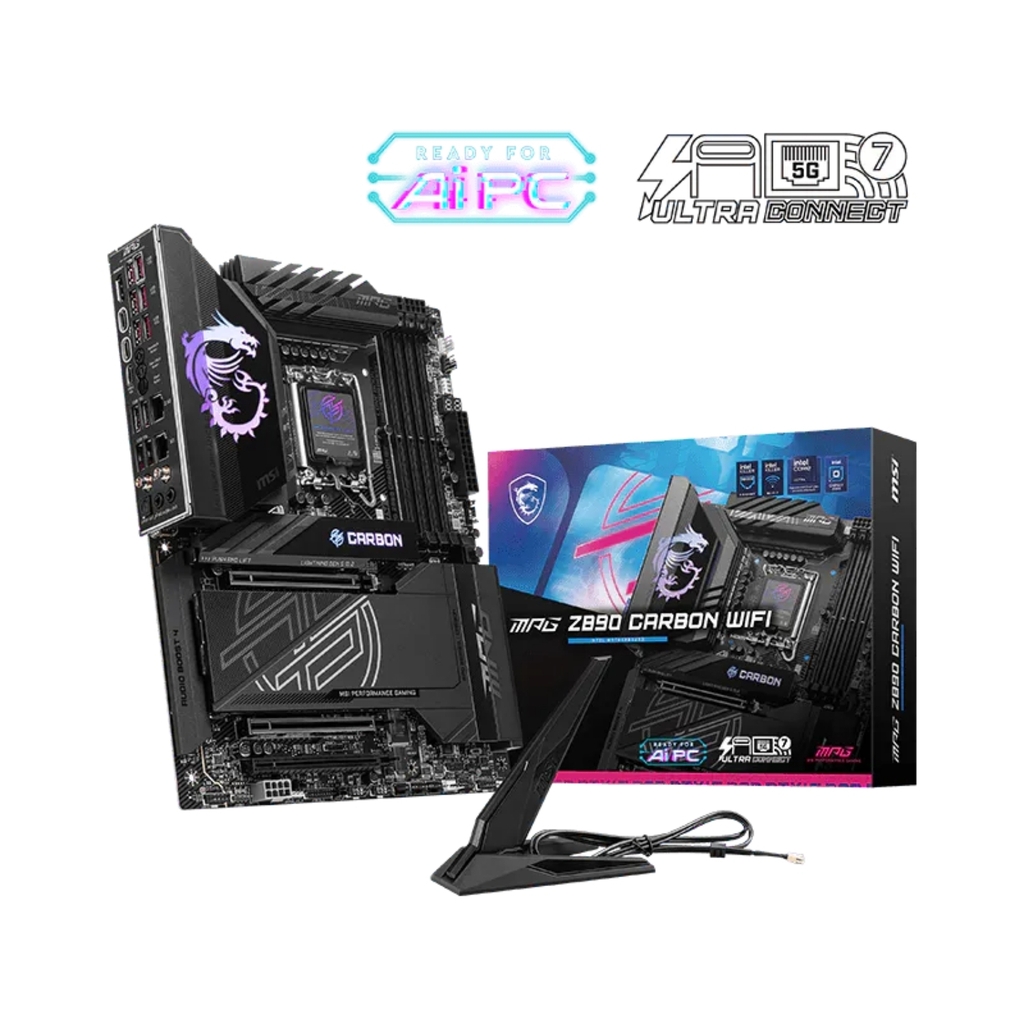

Mainboard MSI MPG Z890 CARBON WIFI

📌 Cam Kết của KHO CÔNG NGHỆ ONLINE
✍️ Sản phẩm mới chính hãng 100%
✍️ Bảo hành 36 Tháng - Tại TTBH của Hãng hoặc Shop đều được ( qua serial trên sản phẩm)
✍️ Đổi trả 15 ngày đầu: Với các lỗi nhà sản xuất, hư hỏng trong quá trình vận chuyển, giao sai hoặc thiếu phụ kiện.
_________________________

Thông số kỹ thuật:

- Chipset: INTEL Z890

- CPU: LGA 1851, Supports Intel Core Ultra Processors (Series 2)

- Memory
  + 4 x DDR5 UDIMM, Max. 256GB
  + Memory Speed: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  + Max. OC:
 • 1DPC 1R: 9200+ MT/s
 • 1DPC 2R: 7200+ MT/s
 • 2DPC 1R: 6400+ MT/s
 • 2DPC 2R: 5600+ MT/s
+ Supports Intel POR Speed and JEDEC Speed
+ Supports Memory Overclocking and Intel XMP 3.0
+ Supports Dual-Controller Dual-Channel mode
+ Supports Non-ECC, Un-buffered memory
+ Supports CUDIMM

- Onboard Graphics
+ 1x HDMI (Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*)
+ 2x Type-C DisplayPort
+ ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz

- Slot
+ 3 × PCIe x16 Slots
• PCI_E1: PCIe 5.0 x16 (CPU)
• PCI_E2: PCIe 5.0 x8 (CPU)
• PCI_E3: PCIe 4.0 x4 (Chipset)
+ BIOS Lane Configuration:
• PCI_E1: x8 + x4 + x4
• PCI_E2: x4 + x4

- Audio
+ Realtek ALC1220P Codec
+ 7.1-Channel High Definition Audio
+ Supports S/PDIF output

- Storage
  + 5 × M.2 Slots
  + M.2_1: PCIe 5.0 x4 (CPU, 2280/2260)
  + M.2_2: PCIe 4.0 x4 (CPU, 2280/2260)
  + M.2_3: PCIe 4.0 x4 (Chipset, 2280/2260)
  + M.2_4: PCIe 4.0 x4 (Chipset, 22110/2280/2260)
  + M.2_5: PCIe 4.0 x4 / SATA (Chipset, 2280/2260)
  + 4 × SATA 6Gb/s

- RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / for M.2 NVMe storage devices

- Onboard Thunderbolt
+ 2 X Thunderbolt 4 (Rear)
+ Up to 40Gbps (Thunderbolt) / 20Gbps (USB4) / 10Gbps (USB 3.2)
+ 15W Power Charging (5V/3A)
+ Daisy-chain: Up to 3 × Thunderbolt 4 or 5 × Thunderbolt 3 Devices per Port
+ Supports Up to 8K Display

- USB
+ 4 x USB 2.0 (Front)
+ 4 x USB 5Gbps Type-A (Front)
+ 10 x USB 10Gbps Type-A (Rear)
+ 1 x USB 10Gbps Type-C (Rear)
+ 1 x USB 20Gbps Type-C (Front, USB PD 27W)

- LAN: 1x Intel Killer E5000B 5G LAN, 1x Intel I226V 2.5G LAN

- Internal IO
+ 1 x ATX Power (ATX_PWR)
+ 2 x CPU Power (CPU_PWR)
+ 1 x PCIe 8-pin Power (PCIE_PWR)
+ 1 x Front USB Type-C Power (PD_PWR1)
+ 1 x CPU Fan
+ 1 x PUMP_SYS Fan
+ 5 x System Fans
+ 1 x ARGB + Fan + USB 2.0 Header (JAF_2)
+ 2 x Front Panel (JFP)
+ 1 x Chassis Intrusion (JCI)
+ 1 x Water Flow Header
+ 1 x Front Audio (JAUD)
+ 1 x Thermal Sensor (T_SEN)
+ 3 x ARGB Gen2 (JARGB_V2)
+ 1 x RGB LED (JRGB)
+ 1 x TPM Header (TPM 2.0)
+ 4 x USB 2.0
+ 4 x USB 5Gbps Type-A
+ 1 x USB 20Gbps Type-C

- WIRELESS LAN & BLUETOOTH
+ Intel Killer BE1750x Wi-Fi 7
+ Pre-installed M.2 Key-E Module
+ Up to 5.8Gbps (2.4/5/6GHz, 320MHz)
+ 802.11 a/b/g/n/ac/ax/be
+ Bluetooth 5.4, MLO, 4K-QAM

- LED FEATURE: 4x EZ Debug LED, 1x EZ Digit Debug LED

- OPERATING SYSTEM: Support for Windows 11 64-bit

- PCB Info: ATX (243.84mmx304.8mm)
