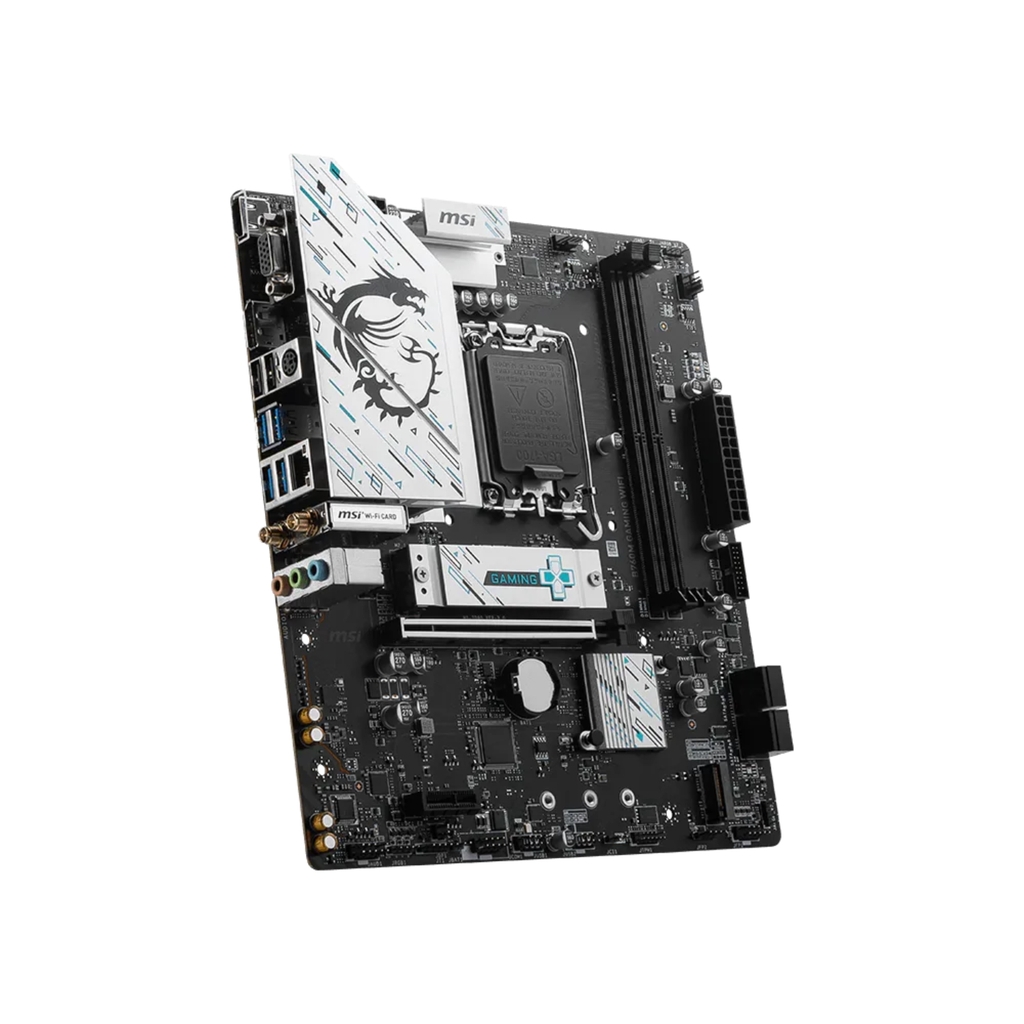

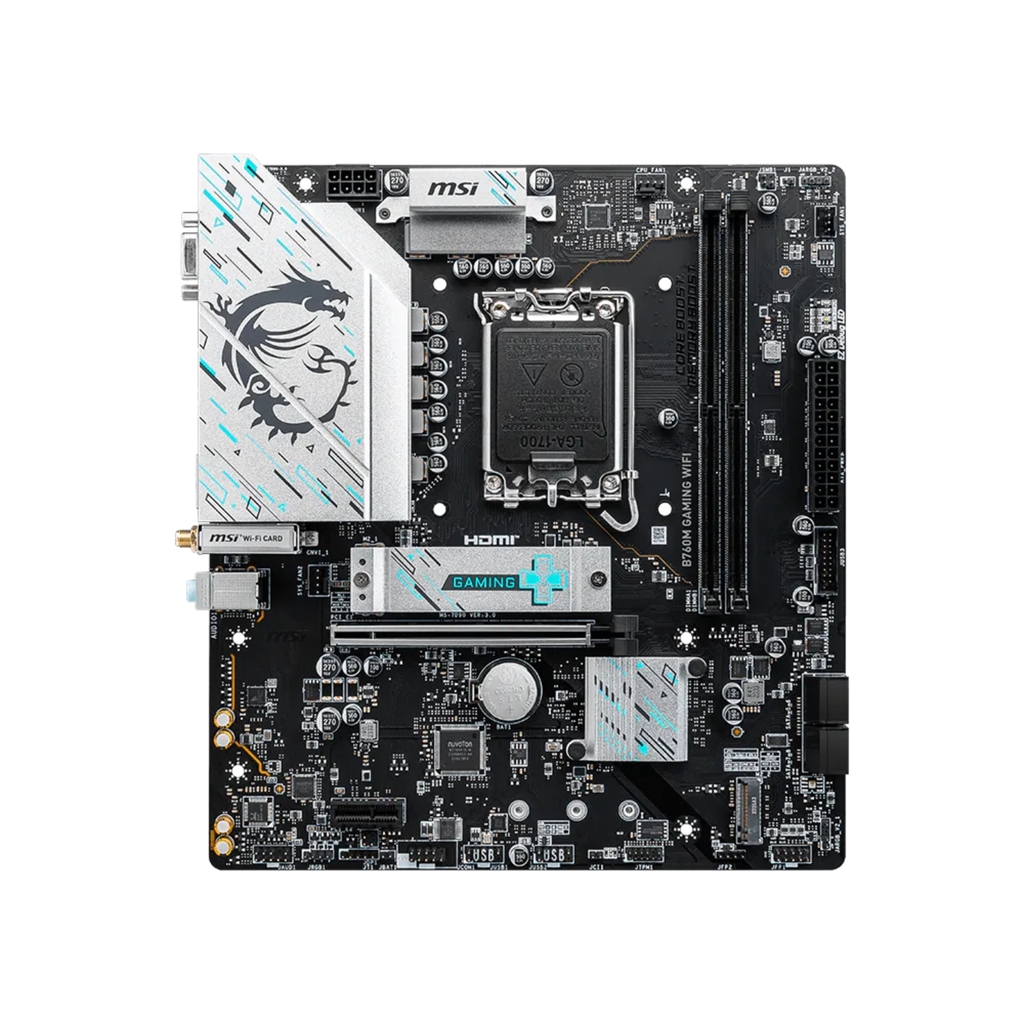

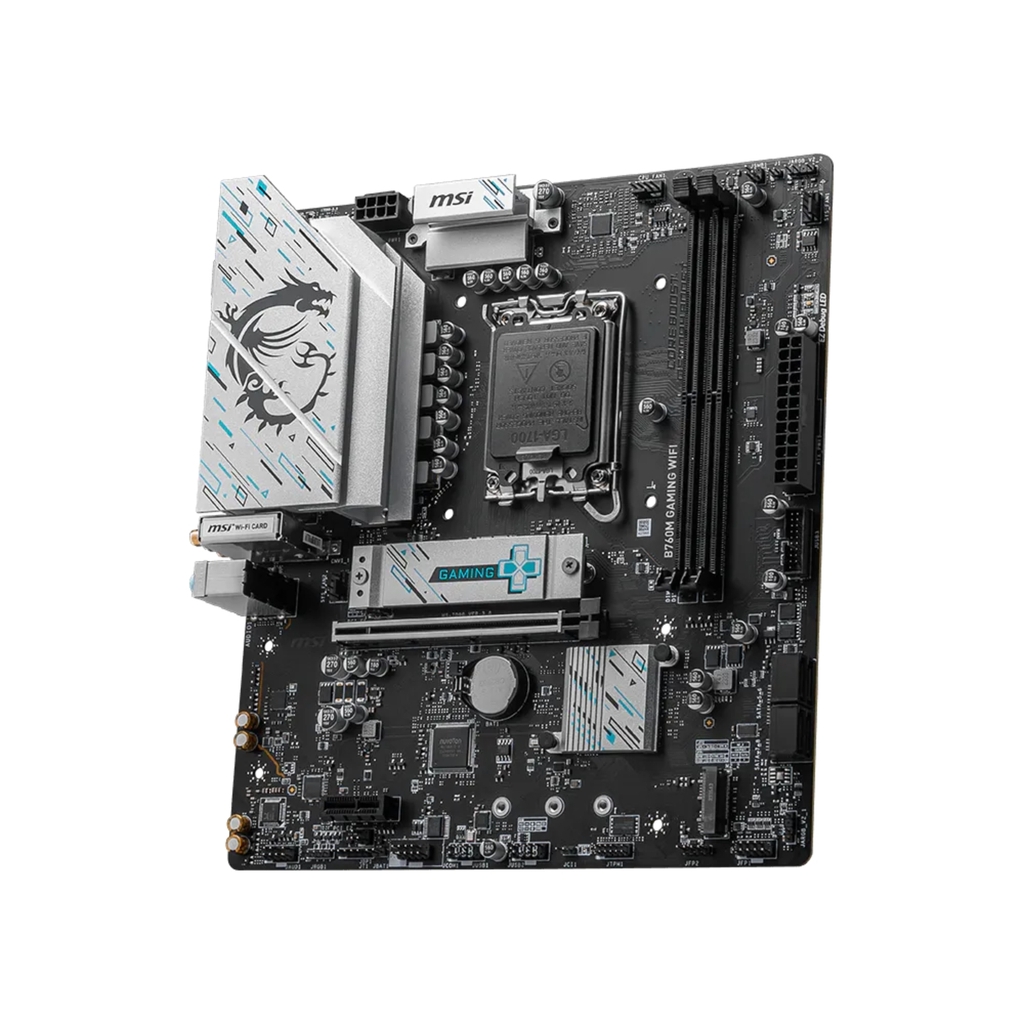

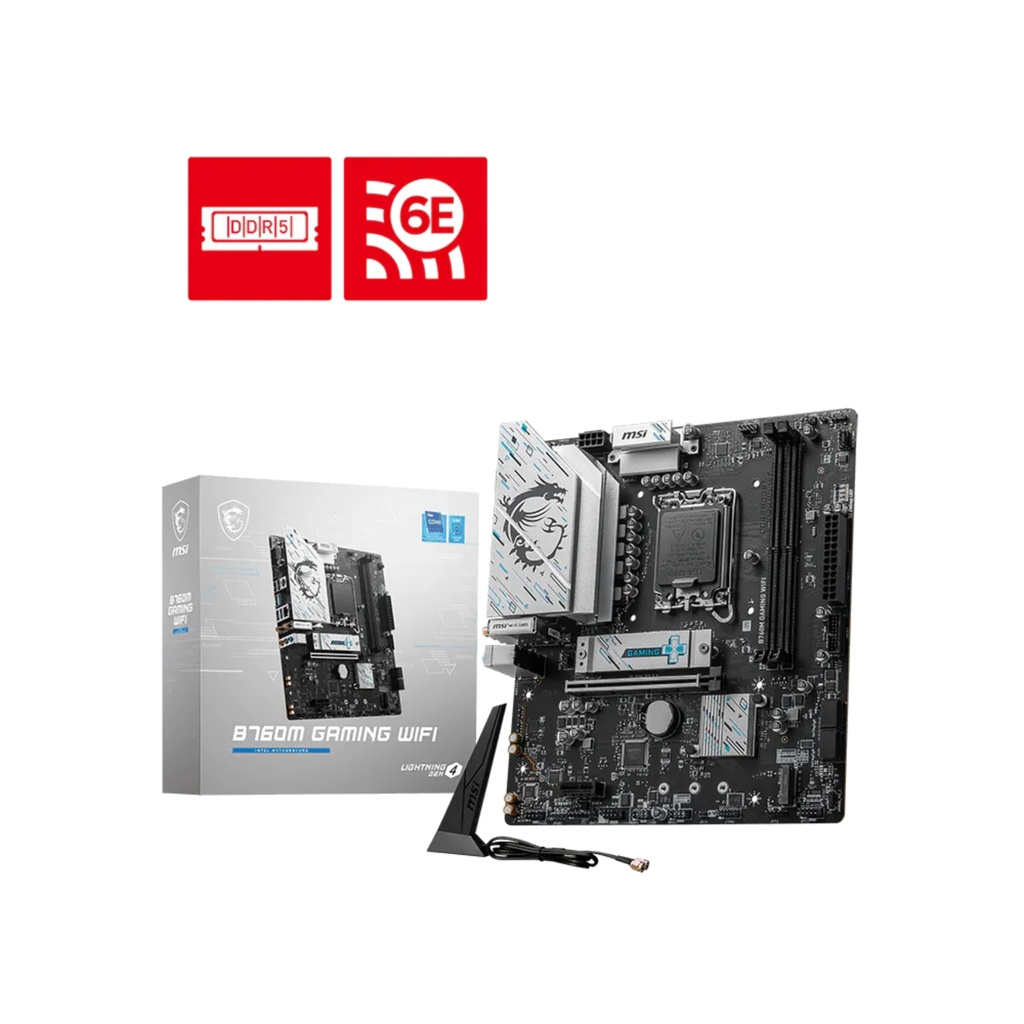

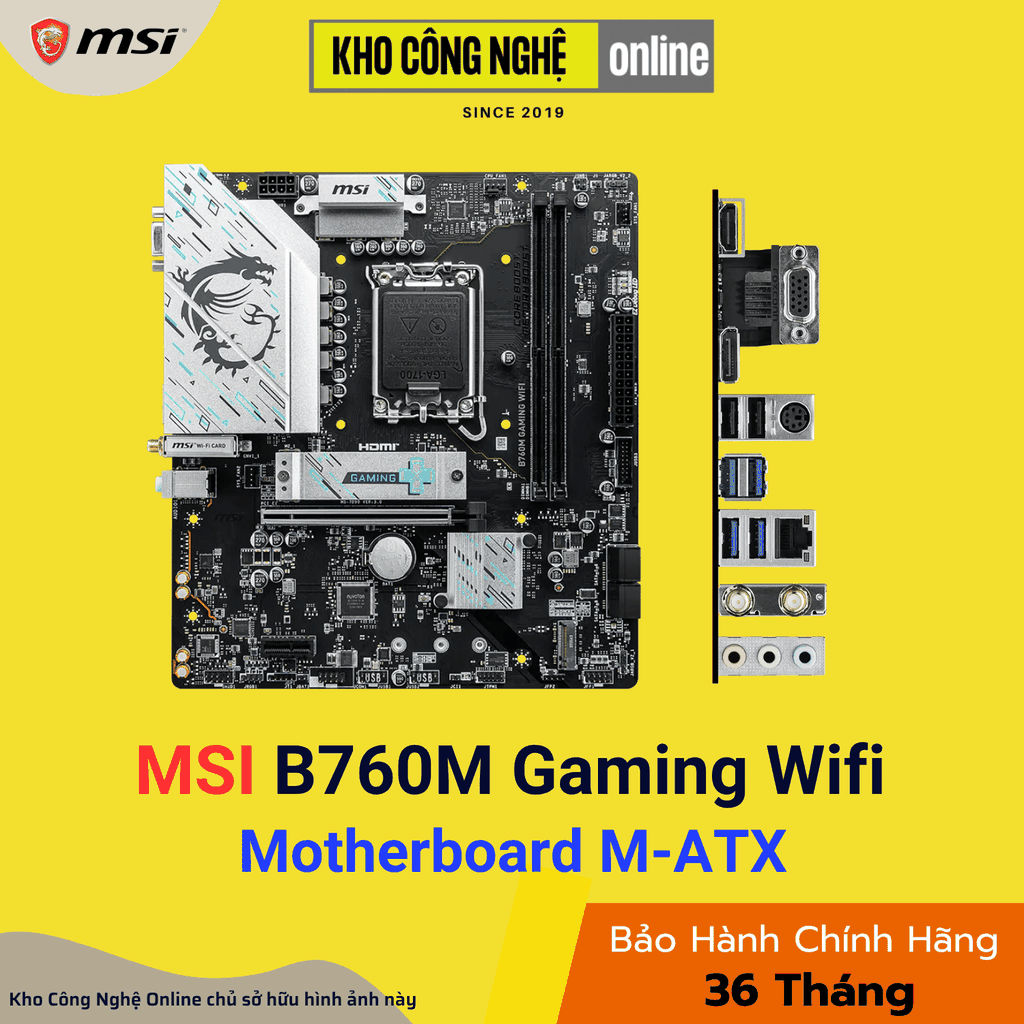

Mainboard MSI B760M Gaming Wifi DDR5

Bảo Hành Chính Hãng 3 Năm

Thông số kỹ thuật:
- Chipset: INTEL B760
- CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- LGA 1700
- Memory:
+ 2x DDR5, Maximum Memory Capacity 128GB
+ Memory support: DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
+ Max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
+ XMP: Supports Intel® XMP 3.0 OC
+ Memory channel: Supports Dual-Controller Dual-Channel mode
+ Memory type: Supports non-ECC, un-buffered memory
- Onboard graphics:
+ 1x HDMI™
+ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
+ 1x DisplayPort
+ Support DP 1.4, maximum resolution of 4K 60Hz*
+ 1x VGA
+ Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot:
+ 1x PCI-E x16 slot
+ 1x PCI-E x1 slot
+ PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
+ PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
- Audio: Realtek® ALC897 Codec
+ 7.1-Channel High Definition Audio
+ Supports S/PDIF output
- Storage:
+ 2x M.2
+ M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
+ M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
+ 4x SATA 6G
*SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
- RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

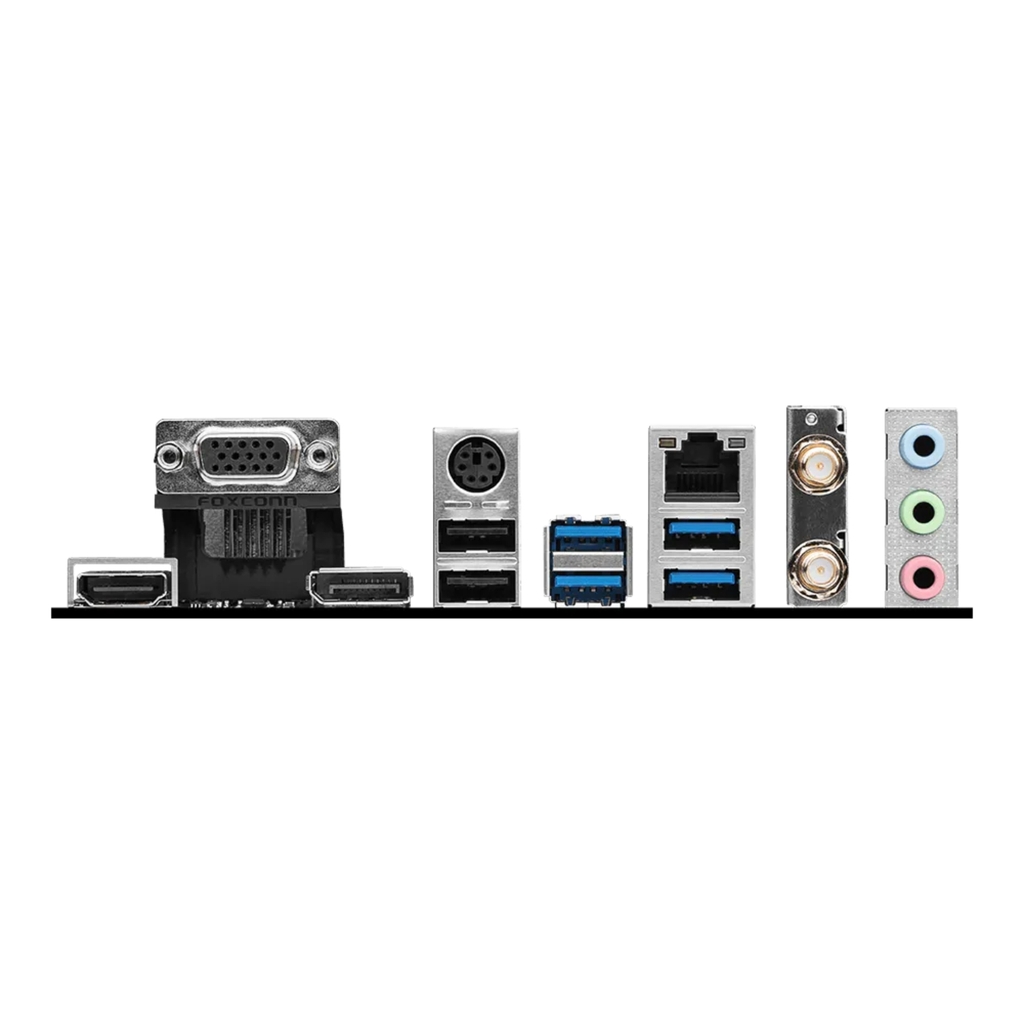

- USB:
+ 2x USB 2.0 (Rear)
+ 4x USB 2.0 (Front)
+ 4x USB 5Gbps Type A (Rear)
+ 2x USB 5Gbps Type A (Front)
- LAN: Realtek® RTL8125B 2.5Gbps LAN
- Internal IO:
+ 1x Power Connector (ATX_PWR)
+ 1x Power Connector (CPU_PWR)
+ 1x CPU Fan
+ 2x System Fan
+ 2x Front Panel (JFP)
+ 1x Chassis Intrusion (JCI)
+ 1x Front Audio (JAUD)
+ 1x Com Port (JCOM)
+ 2x Addressable V2 RGB LED connector (JARGB_V2)
+ 1x RGB LED connector (JRGB)
+ 1x TPM pin header (Support TPM 2.0)
+ 4x USB 2.0 ports
+ 2x USB 5Gbps Type A ports
- Wireless LAN & Bluetooth: Intel® Wi-Fi 6E
+ The Wireless module is pre-installed in the M.2 (Key-E) slot
+ Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
+ Supports 802.11 a/ b/ g/ n/ ac/ ax
+ Supports Bluetooth® 5.3, FIPS, FISMA
*Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
**Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
- LED feature: 4x EZ Debug LED
- Operating system: Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB info: mATX
+ 220mm x 243.84mm
