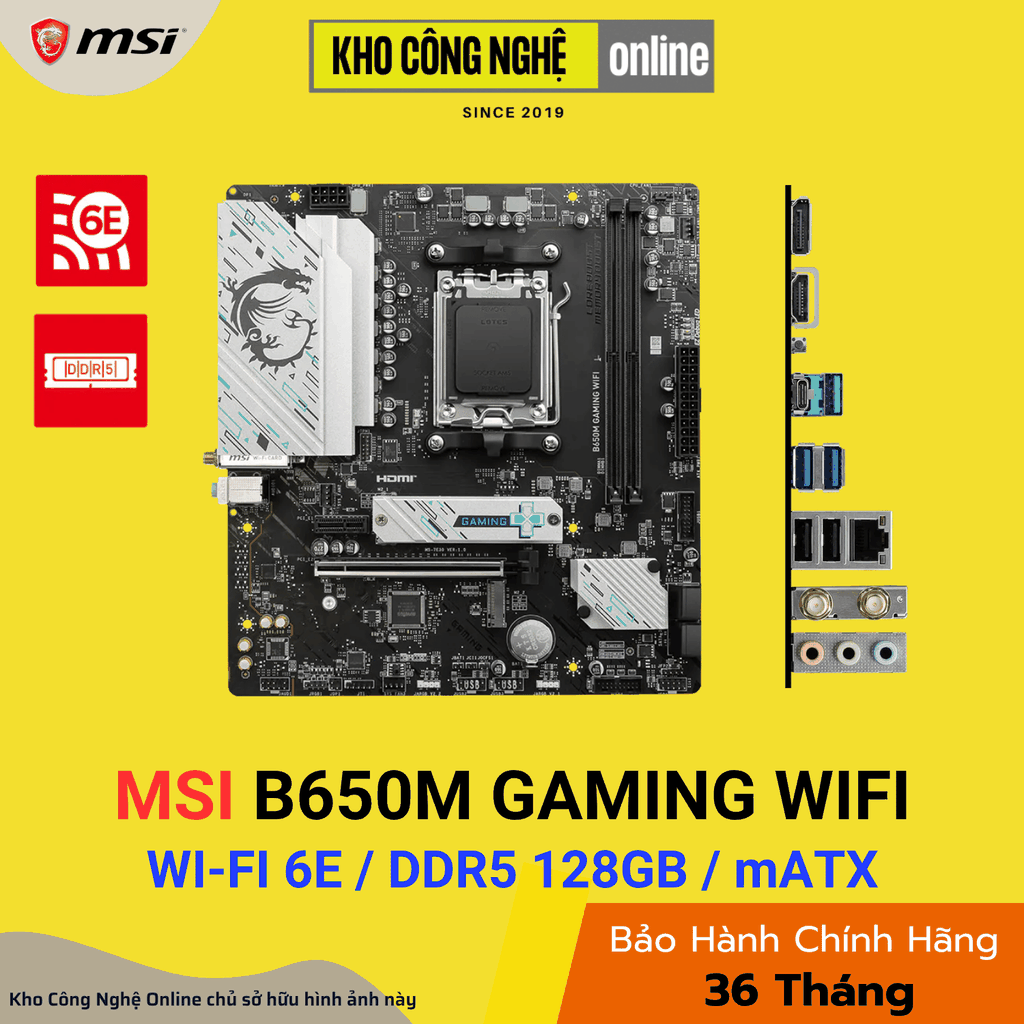

Mainboard MSI B650M GAMING WIFI

📌 Cam Kết của KHO CÔNG NGHỆ ONLINE
✍️ Sản phẩm Mới Chính hãng 100%
✍️ Bảo hành 36 Tháng - Tại TTBH của Hãng hoặc Shop (Bảo hành thông qua serial trên sản phẩm)
✍️ Đổi trả 15 ngày đầu: Với các lỗi nhà sản xuất, hư hỏng trong quá trình vận chuyển, giao sai hoặc thiếu phụ kiện
_________________

Thông số kỹ thuật:

- Chipset: AMD B650

- CPU:
+ Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
+ Socket AM5

- Memory
+ 2x DDR5, Maximum Memory Capacity 128GB
+ Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
+ Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
+ Supports Dual-Channel mode
+ Supports non-ECC, un-buffered memory
+ Supports AMD EXPO

- Onboard Graphics
+ 1x HDMI
+ Support HDMI 2.1, maximum resolution of 4K 60Hz*
+ 1x DisplayPort
+ Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed

- Slot
+ 1x PCI-E x16 slot (Qty)
+ Supports x16/x1
• Supports x16/x4 (For Ryzen 9000/ 7000 Series processors)
• Supports x8/x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports x4/x4 (For Ryzen 8500/ 8300 Series processors)
+ 1x PCI-E x1 slot (Qty)
+ PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
+ PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

- Audio
+ Realtek ALC897 Codec
+ 7.1-Channel High Definition Audio

- Storage
+ 2x M.2 (Qty)
+ M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
+ M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
+ 4x SATA 6G (Qty)

•The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processor

- RAID:
+ Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
+ Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

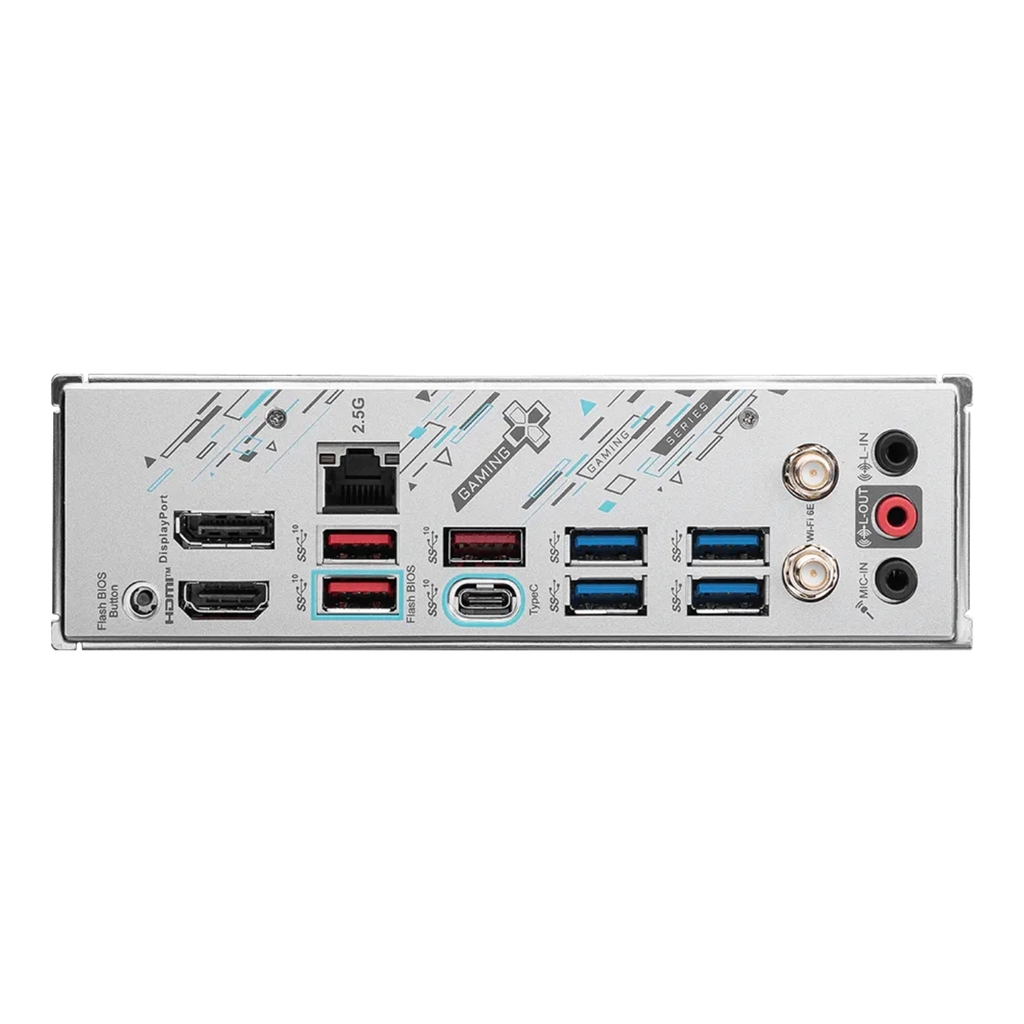

- USB
+ 2x USB 2.0 (Rear)
+ 4x USB 2.0 (Front)
+ 3x USB 5Gbps Type A (Rear)
+ 1x USB 5Gbps Type C (Rear)
+ 4x USB 5Gbps Type A (Front)

- LAN: Realtek RTL8125BG 2.5Gbps LAN

- Internal IO
+ 1x Power Connector(ATX_PWR)
+ 1x Power Connector(CPU_PWR)
+ 1x CPU Fan
+ 3x System Fan
+ 2x Front Panel (JFP)
+ 1x Chassis Intrusion (JCI)
+ 1x Front Audio (JAUD)
+ 2x Addressable V2 RGB LED connector (JARGB_V2)
+ 1x RGB LED connector(JRGB)
+ 1x TPM pin header(Support TPM 2.0)
+ 4x USB 2.0 ports
+ 4x USB 5Gbps Type A ports

- WIRELESS LAN & BLUETOOTH:
+ Wi-Fi 6E
+ The Wireless module is pre-installed in the M.2 (Key-E) slot
+ Supports MU-MIMO TX/RX
+ Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
+ Supports 802.11 a/ b/ g/ n/ ac/ ax
+ Supports Bluetooth

- LED FEATURE: 4x EZ Debug LED

- OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit

- PCB Info: mATX (226mmx243.84mm)
