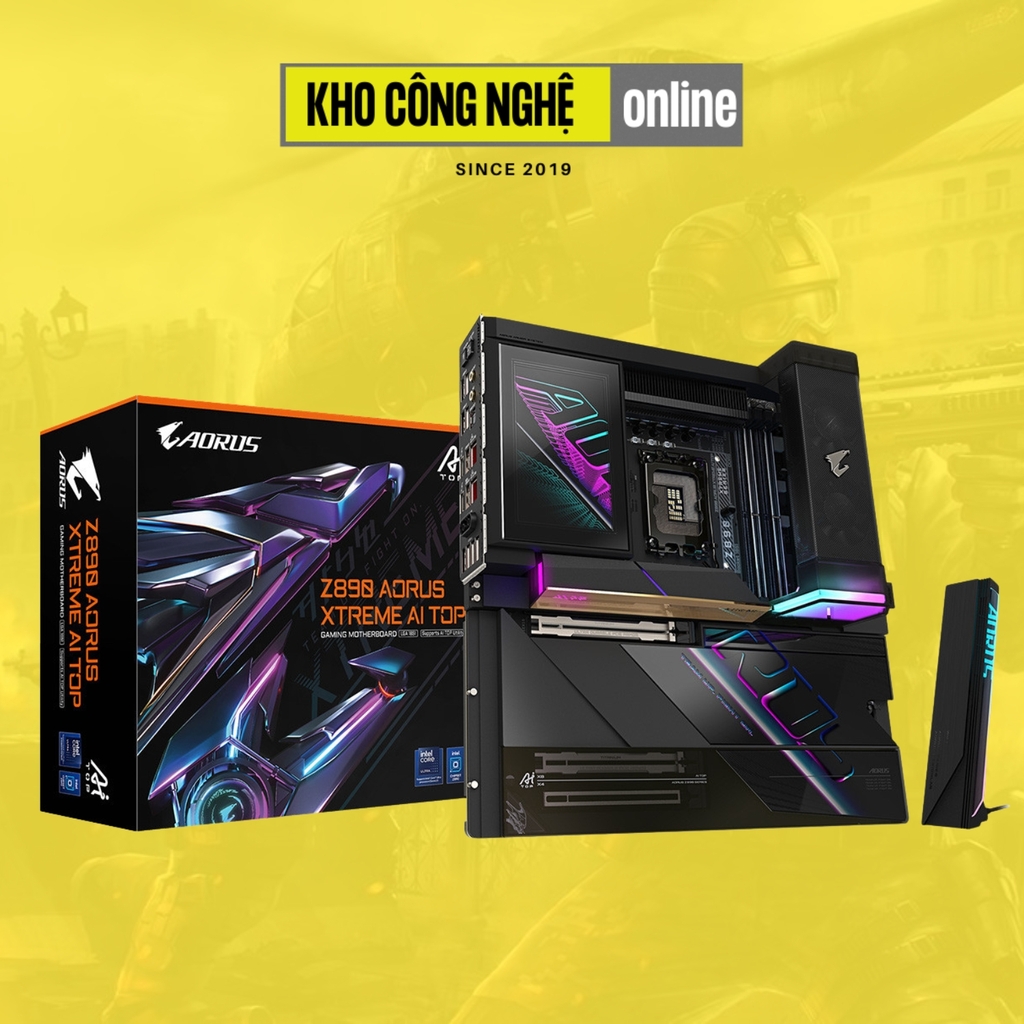

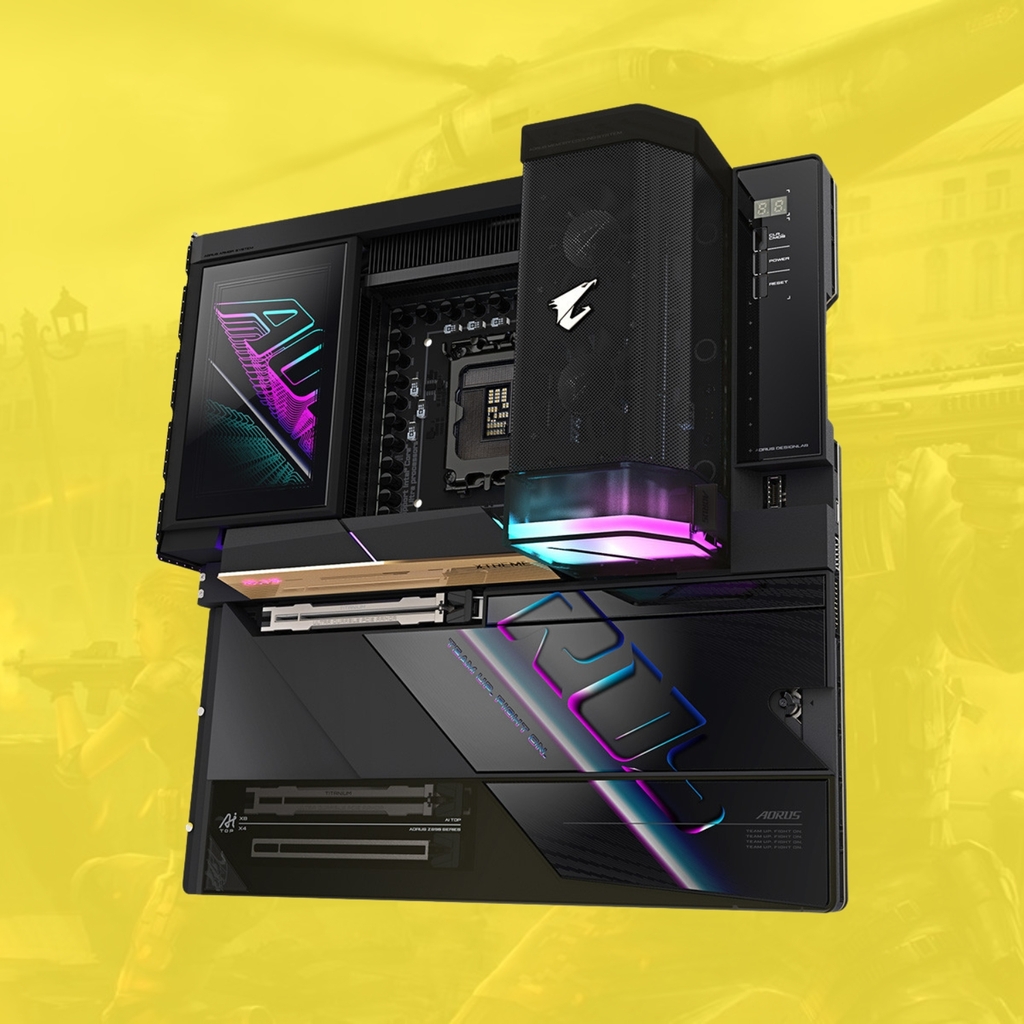

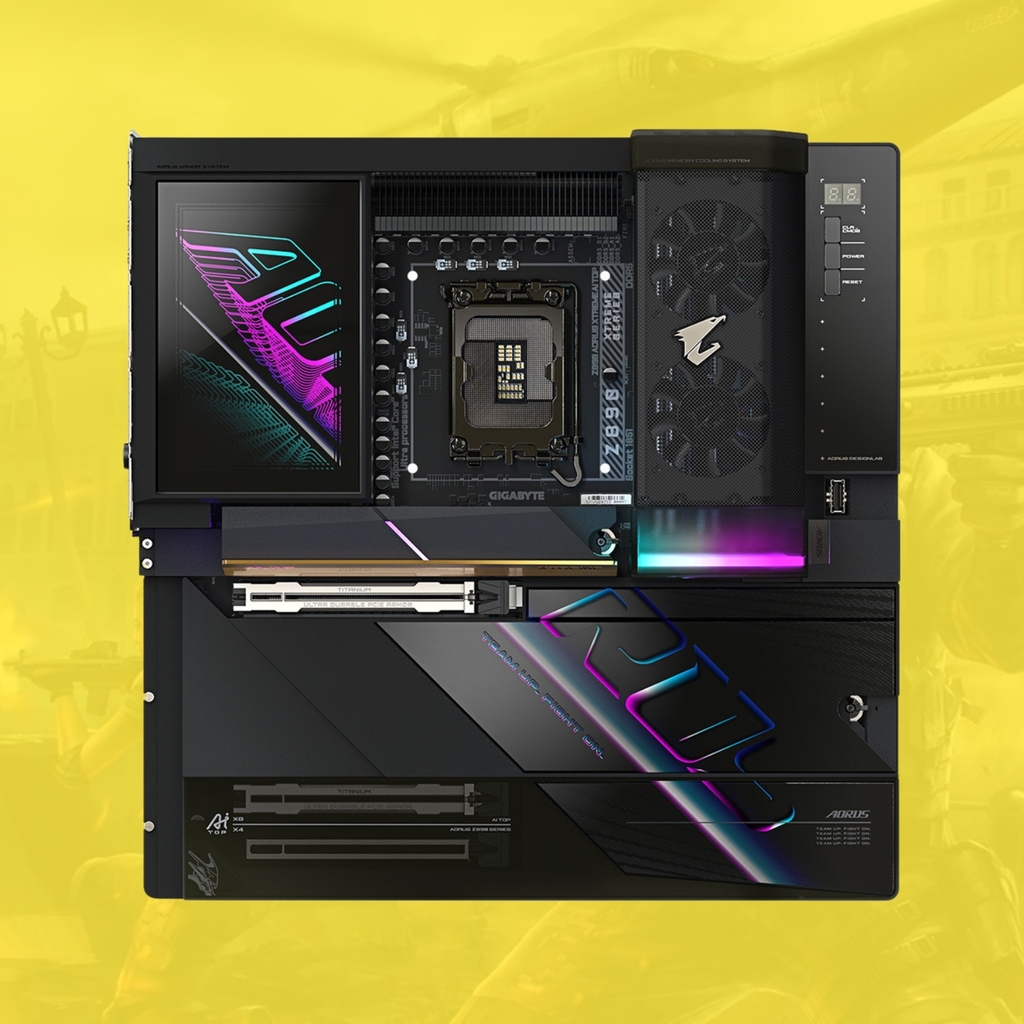

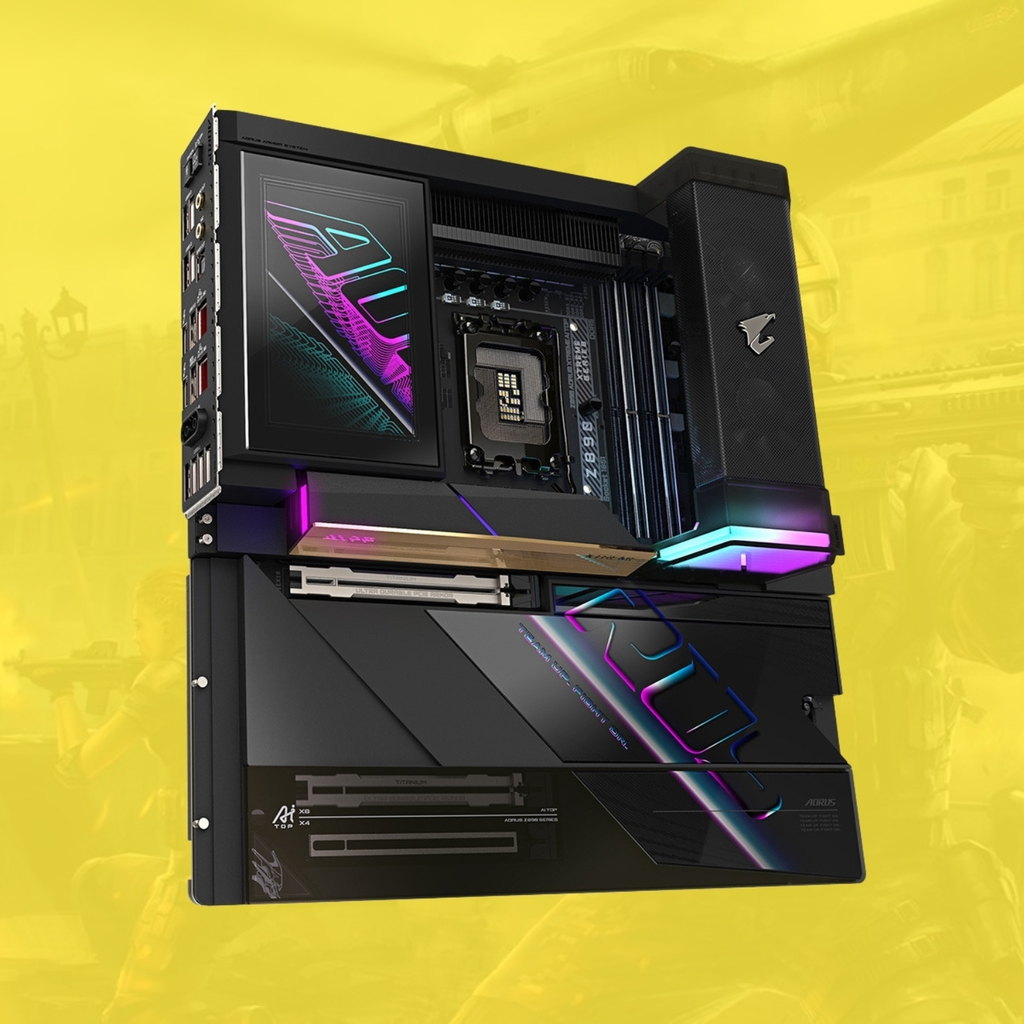

Mainboard GIGABYTE Z890 AI TOP (Intel Z890, Socket 1851, E-ATX, 4 khe RAM DDR5)

Bảo hành 36 Tháng

Thông số sản phẩm

- Sản Phẩm: Mainboard
- Thương hiệu: GIGABYTE
- Model: Z890 AORUS XTREME AI TOP
- Chipset: INTEL Z890
- Hỗ trợ CPU:
+ LGA1851 socket: Support for Intel® Core™ Ultra Processors
+ L3 cache varies with CPU
- Bộ nhớ
+ Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
+ 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
+ Dual channel memory architecture
+ Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
+ Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
+ Support for Extreme Memory Profile (XMP) memory modules
+ Support CUDIMM memory module

- Đồ họa
+ Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller:
++ 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display output)

+ Integrated Graphics Processor-Intel® HD Graphics support:
++ 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs

+ When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
+ When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

- Khe mở rộng
+ CPU:
++ 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
++ 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
+ Chipset:
++ 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- Storage
+ CPU:
++ 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
++ 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

+ Chipset:
++ 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2M_SB)
++ 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2L_SB)
+ 4 x SATA 6Gb/s connectors

+ RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
+ RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

- Audio
+ 1 ESS ES9280AC DAC chip+2 ESS ES9080 chips
+ DTS® Sound Unbound™
+ High Definition Audio
+ 2-channel
+ Support for S/PDIF Out

- LAN
+ 2 x Marvell® AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

- Cổng kết nối nội bộ
+ 1 x 24-pin ATX main power connector
+ 2 x 8-pin ATX 12V power connectors
+ 1 x CPU fan header
+ 1 x CPU fan/water cooling pump header
+ 4 x system fan headers
+ 2 x system fan/water cooling pump headers
+ 3 x addressable RGB Gen2 LED strip headers
+ 1 x RGB LED strip header
+ 4 x M.2 Socket 3 connectors
+ 8 x SATA 6Gb/s connectors
+ 1 x front panel header
+ 1 x front panel audio header
+ 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port)
+ 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support
+ 2 x USB 3.2 Gen 1 headers
+ 2 x USB 2.0/1.1 headers
+ 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
+ 1 x power button
+ 1 x reset button
+ 1 x Q-Flash Plus button
+ 1 x reset jumper
+ 1 x Clear CMOS jumper
+ 2 x temperature sensor headers
+ 1 x noise detection header

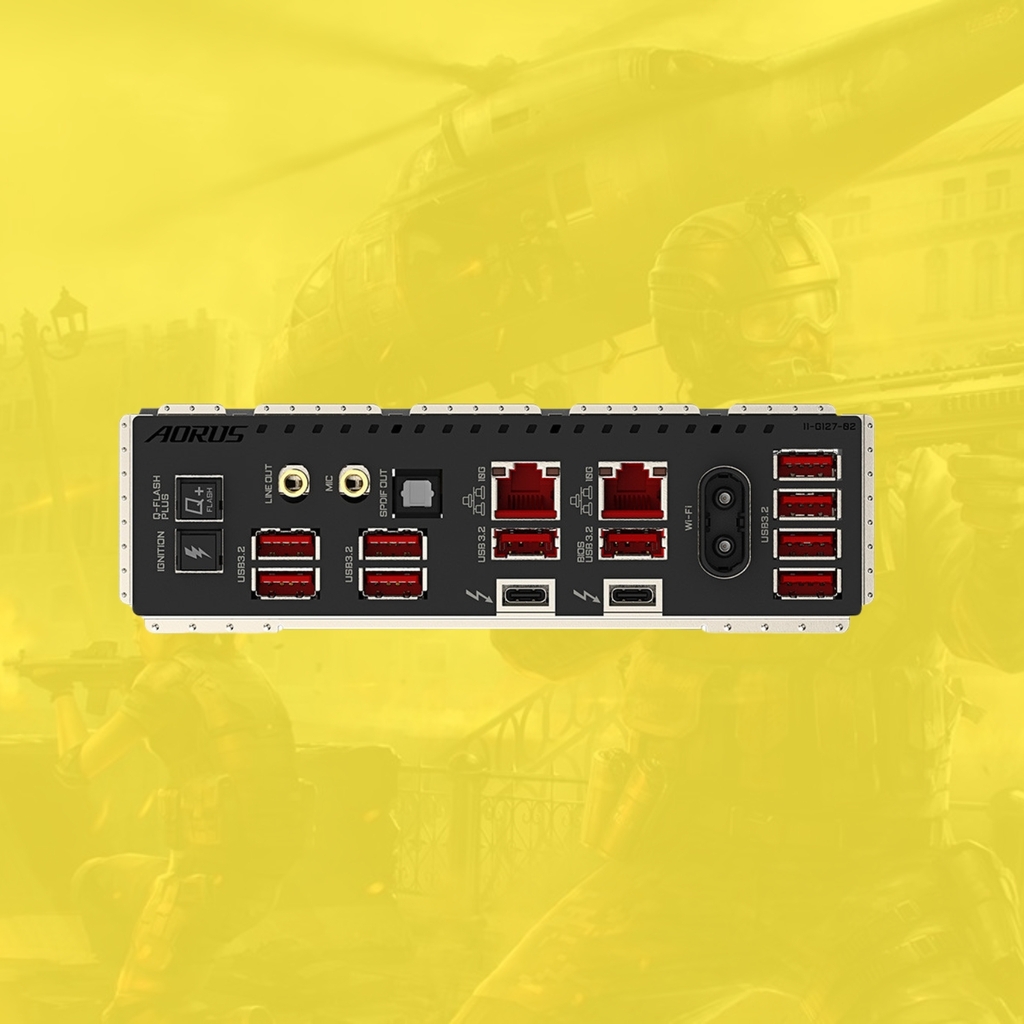

- Cổng kết nối sau
+ 1 x DisplayPort In port
+ 1 x HDMI port (Note)
+ 2 x audio jacks
+ 2 x Intel® Thunderbolt™ 5 connectors (USB Type-C® ports)
+ 2 x USB 3.2 Gen 1 ports
+ 6 x USB 3.2 Gen 2 Type-A ports (red)

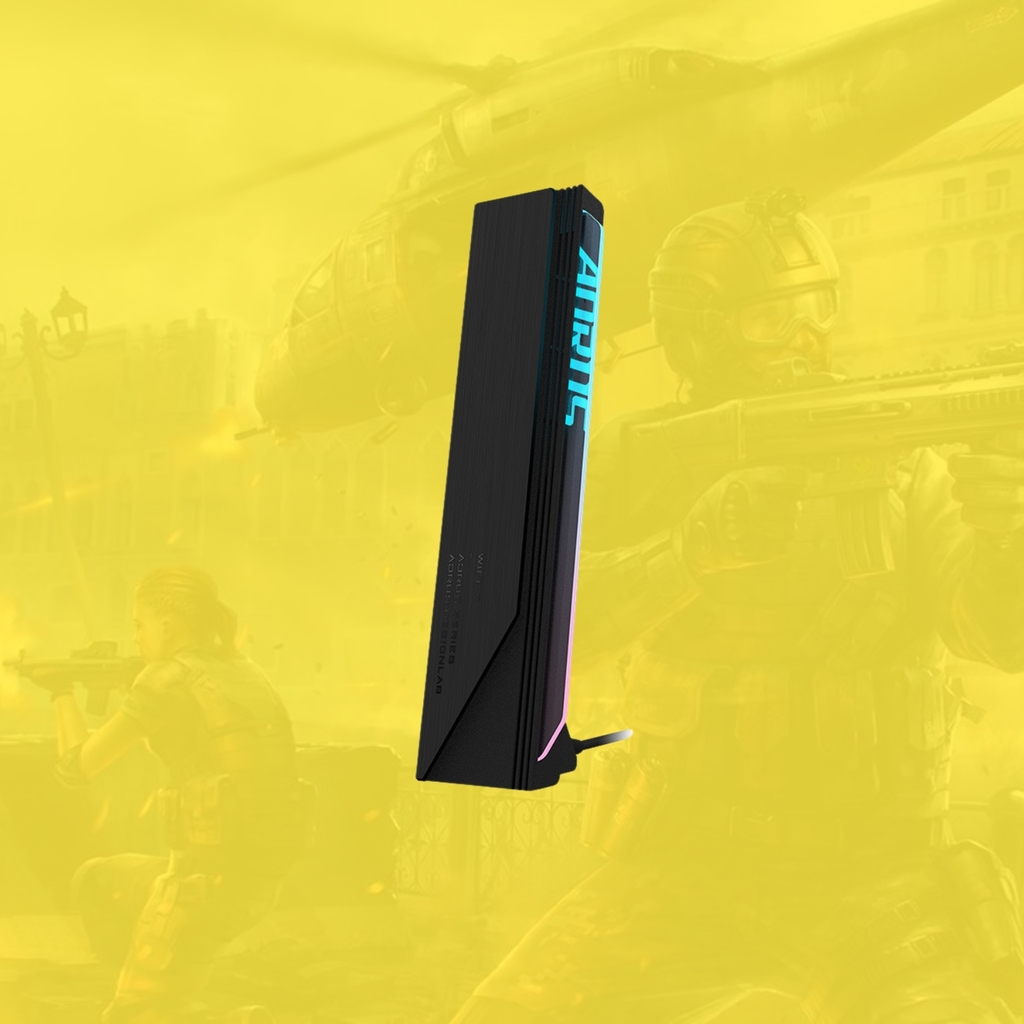

+ 2 x antenna connectors (2T2R)
+ 2 x RJ-45 ports

- BIOS
+ 1 x 256 Mbit flash
+ Use of licensed AMI UEFI BIOS
+ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- OS: Support for Windows 11 64-bit

-Kích thước: E-ATX Form Factor; 30.5cm x 28.5cm
