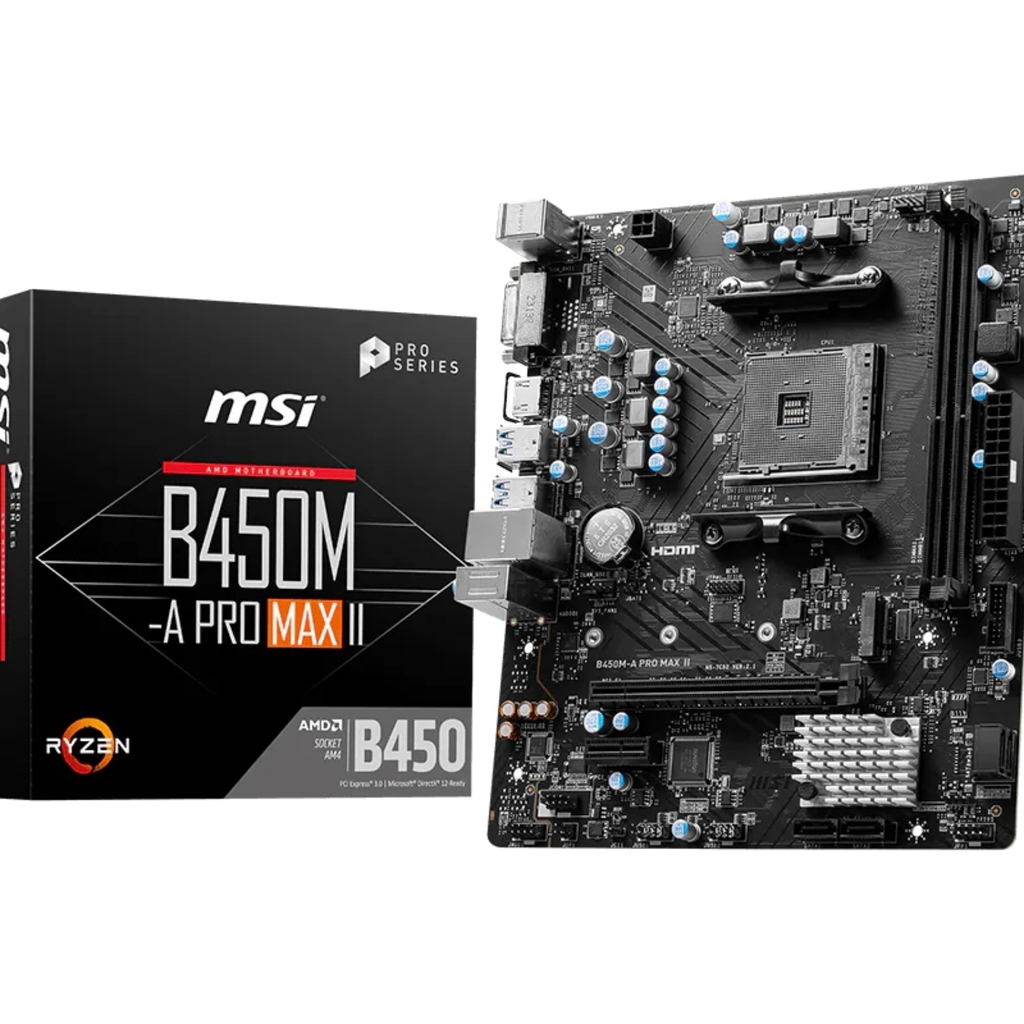

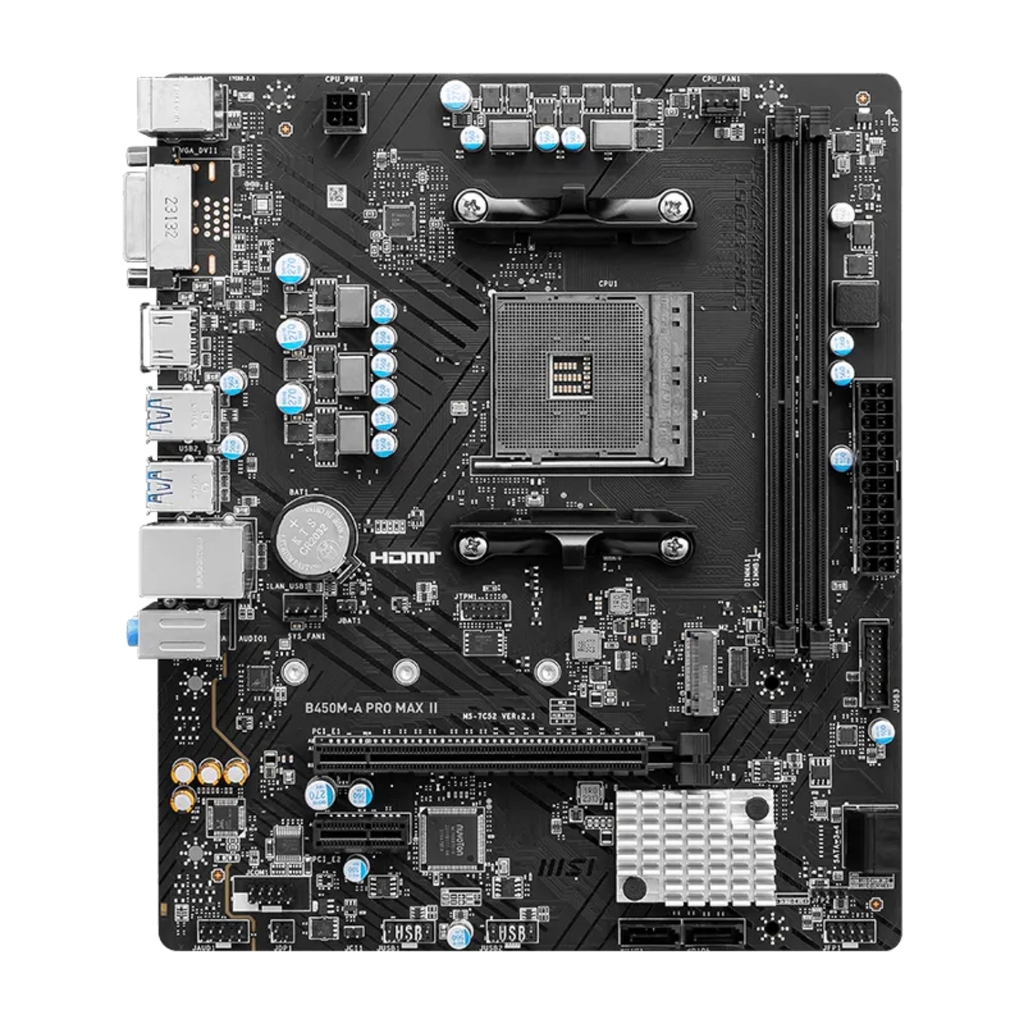

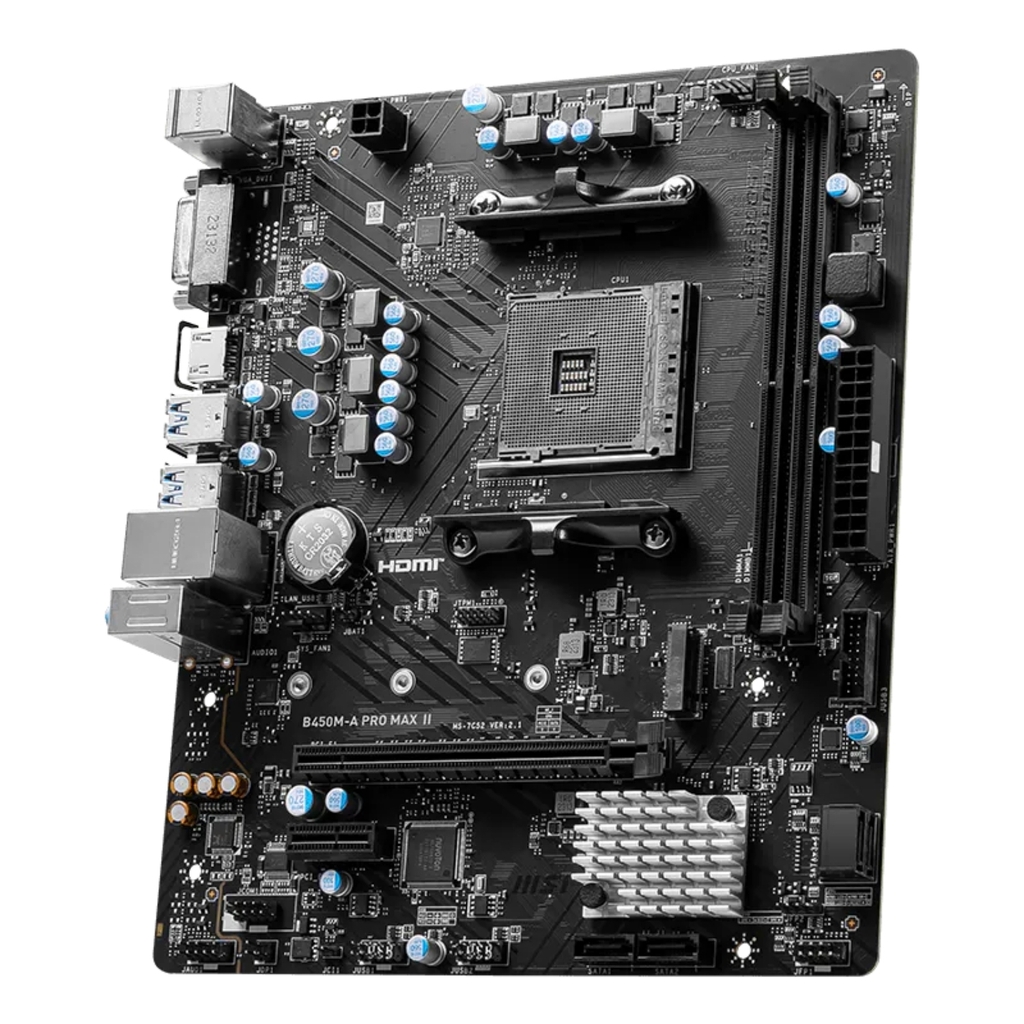

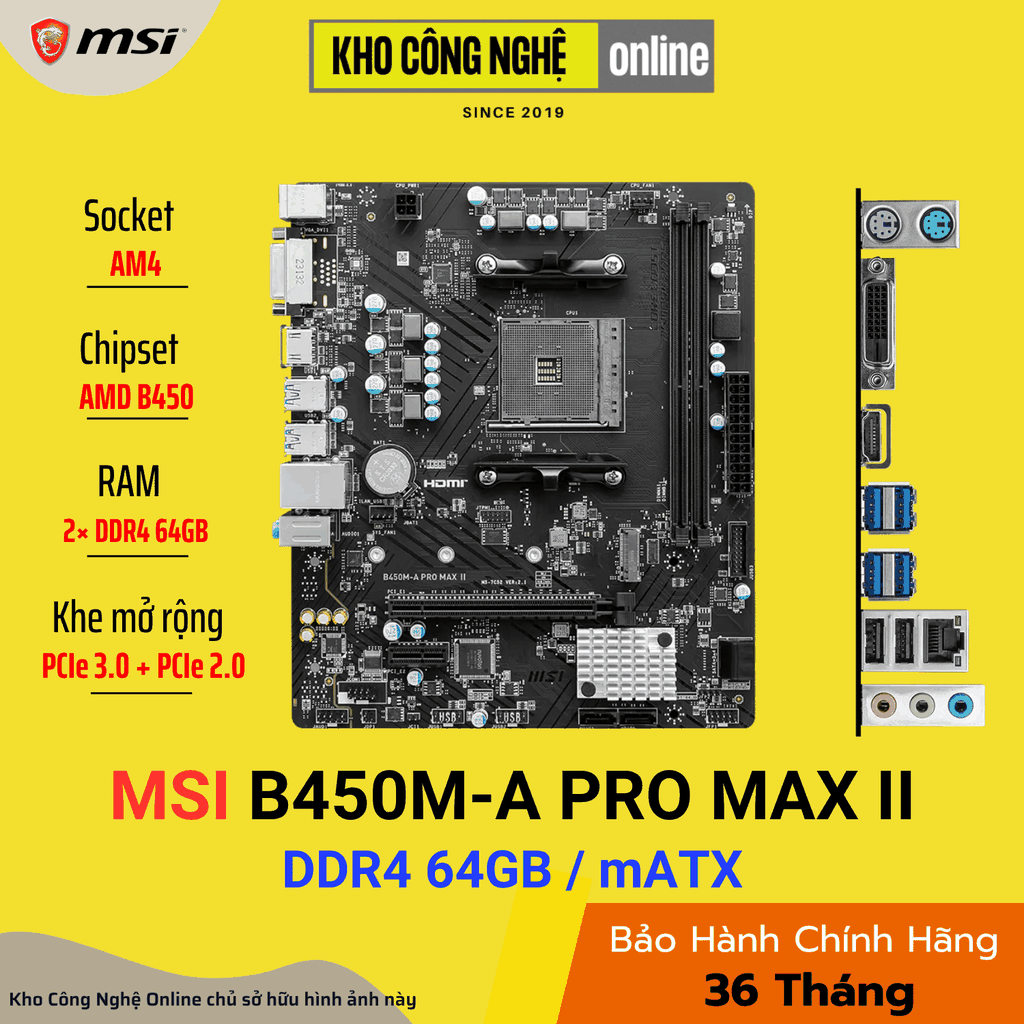

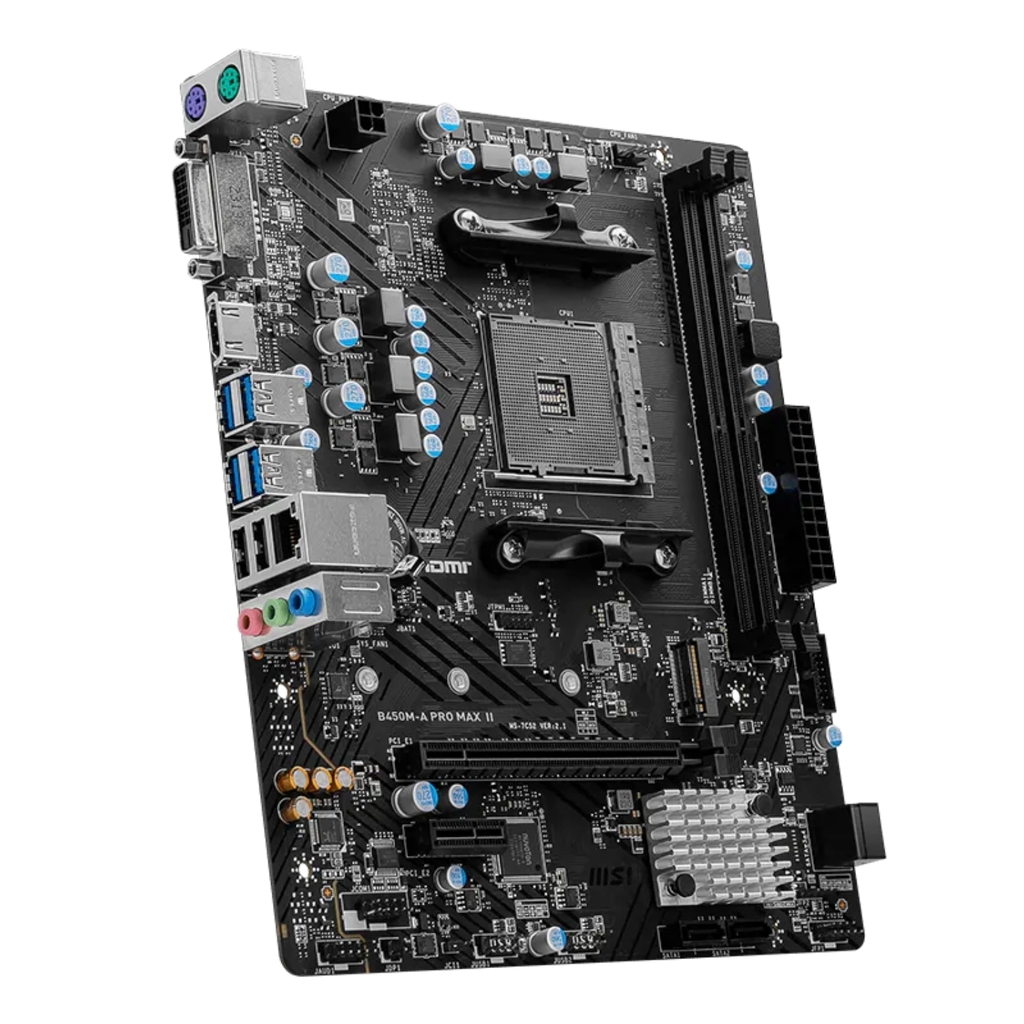

Mainboard MSI B450M-A PRO MAX II

📌 Cam Kết của KHO CÔNG NGHỆ ONLINE
✍️ Sản phẩm Mới Chính hãng 100%
✍️ Bảo hành 36 Tháng - Tại TTBH của Hãng hoặc Shop (Bảo hành thông qua serial trên sản phẩm)
✍️ Đổi trả 15 ngày đầu: Với các lỗi nhà sản xuất, hư hỏng trong quá trình vận chuyển, giao sai hoặc thiếu phụ kiện
__________________

Thông số kỹ thuật:

- Chipset: AMD B450

- CPU:
+ Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors
+ Socket AM4

- Memory
+ 2x DDR4, Maximum Memory Capacity 64GB
+ Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
+ Supports Dual-Channel mode
+ Supports non-ECC, UDIMM memory
+ Supports ECC UDIMM memory (non-ECC mode)
+ Supports un-buffered memory

- Onboard Graphics
+ 1x HDMI
+ Support HDMITM 2.0b with HDR port, maximum resolution of 4K 60Hz*
+ 1x DVI
+ Support DVI-D, maximum resolution of 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

- Slot
+ 1x PCI-E x16 slot
+ 1x PCI-E x1 slot
+ PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
+ PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

- Audio

+ Realtek ALC897 Codec
+ 7.1-Channel High Definition Audio

- Storage
+ 1x M.2
+ M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
+ 4x SATA 6G

- RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

- USB
+ 2x USB 2.0 (Rear)
+ 4x USB 2.0 (Front)
+ 4x USB 5Gbps Type A (Rear)
+ 2x USB 5Gbps Type A (Front)

- LAN: Realtek 8125 2.5Gbps LAN controller

- Internal IO
+ 1x Power Connector(ATX_PWR)
+ 1x Power Connector(CPU_PWR)
+ 1x CPU Fan
+ 1x System Fan
+ 2x Front Panel (JFP)
+ 1x Chassis Intrusion (JCI)
+ 1x Front Audio (JAUD)
+ 1x Com Port (JCOM)
+ 1x TPM pin header(Support TPM 2.0)
+ 4x USB 2.0 ports
+ 2x USB 5Gbps Type A ports

- OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit

- PCB Info: mATX (200mmx236mm)
